Description

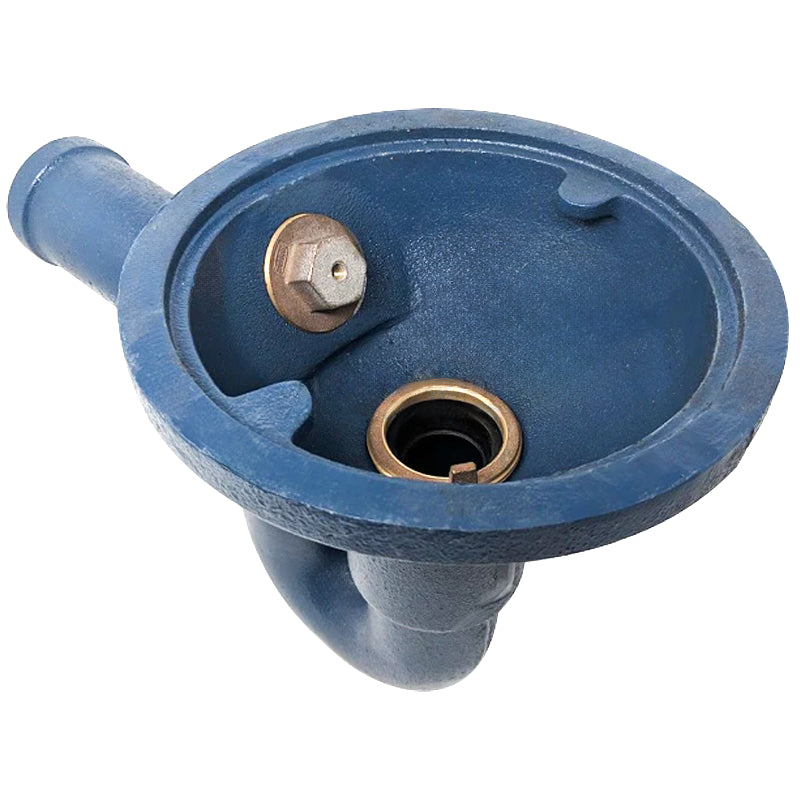

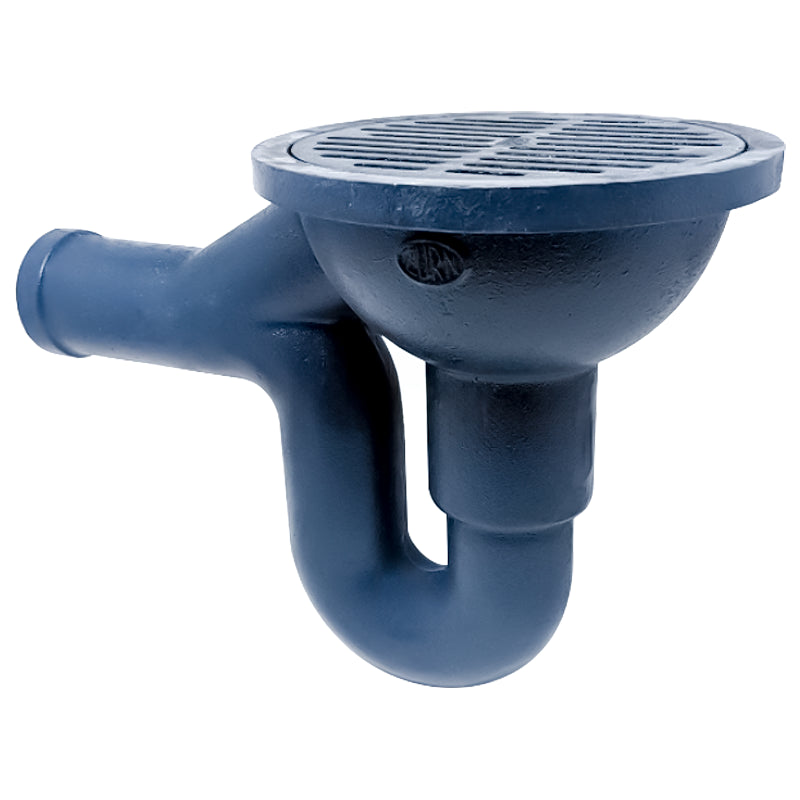

Zurn Z742-2SP 8-1/4" Light-Duty Top Drain w/ Integral Double Wall Trap, 2" Spigot Side Outlet, Ball Float-Type Backwater Valve
Features & Benefits:
- 2" [51mm] Spigot Connect Size / Type.
- 8-1/4" [210mm] Diameter.
- Dura-Coated cast iron body with cast iron, polished bronze, or polished nickel bronze top available.
- Light-Duty.
- Integral double wall trap.
- Side outlet.
- Integral ball float type backwater valve.
Engineering Specification:
- ZURN Z742 8-1/4" [210mm] Diameter top drain, Dura-Coated cast iron body with integral double wall trap and side outlet, with ball float type backwater valve, internal bronze cleanout and light-duty loose slotted grate.
- Z742 = D.C.C.I. Body and Top
- ZB742 = D.C.C.I Body w/ Polished Bronze Top
- ZN742 = D.C.C.I Body w/ Polished Nickel Bronze Top
Technical Documentation:

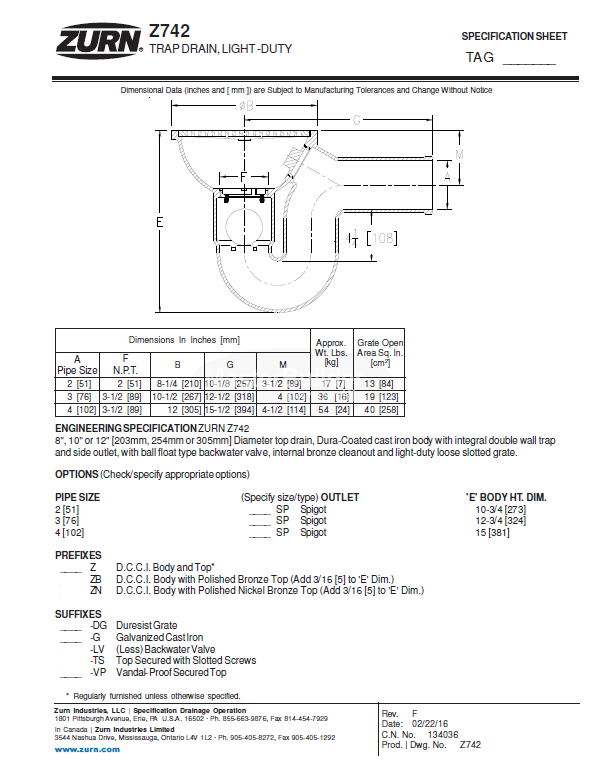

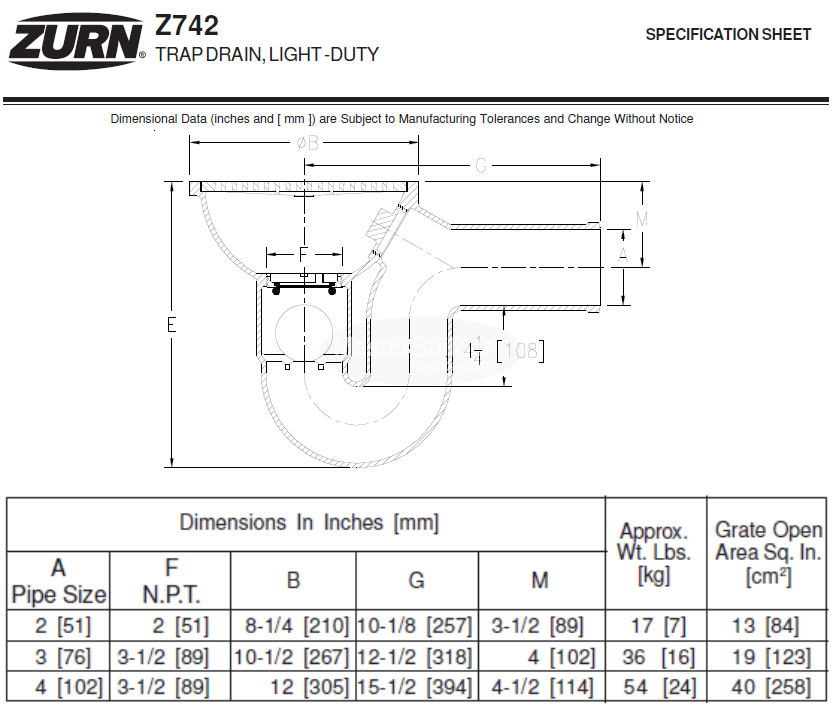

Zurn Z742-2SP 8" Light-Duty Top Drain Specification Submittal: Click Here.
Zurn Z742-2SP 8" Light-Duty Top Drain DXF Drawing File: Click Here.
