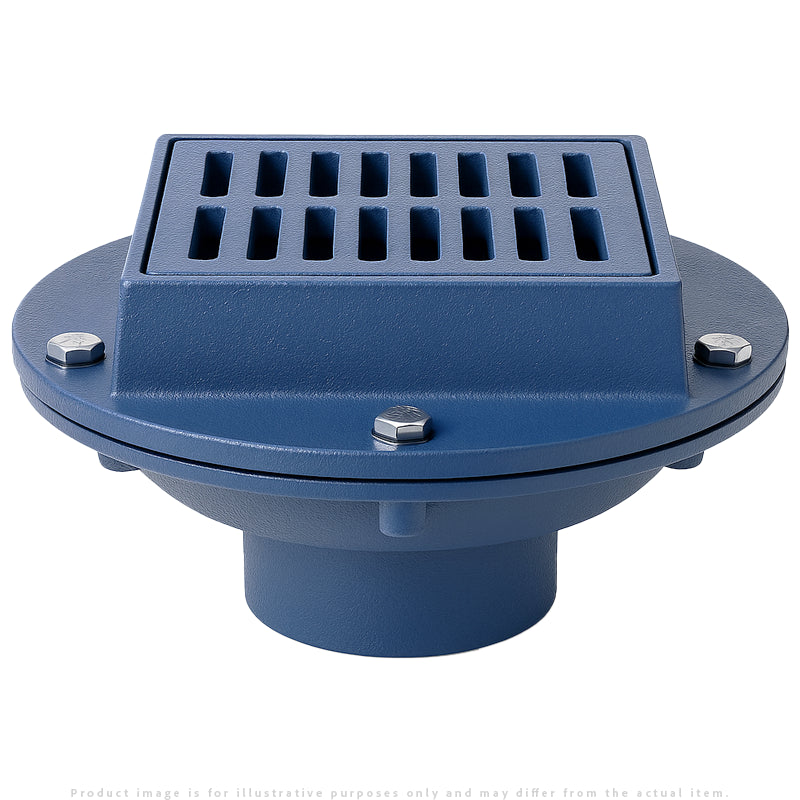

Zurn Z609 / ZB609 / ZN609 9"[229mm] Square Heavy-Duty Drain comes with a Dura-Coated cast iron body with bottom outlet, seepage pan, heavy-duty cast iron anti-tilt slotted grate, and combination membrane flashing clamp and frame.
Features & Benefits:
- Dura-Coated cast iron body with cast iron, polished bronze, or polished nickel bronze top available.
- Provides installation and rework savings with Zurn’s patented contractor solutions.
Engineering Specification:
- ZURN Z609 9" [229mm] Square Top Drain, Dura-Coated cast iron body with bottom outlet, seepage pan, and heavy-duty (Z) cast iron, (ZB) polished bronze, (ZN) polished nickel bronze, anti-tilt slotted grate and combination membrane flashing clamp and frame.
Technical Documentation:
Zurn Z609 9" Square Heavy-Duty Drain Specification Submittal: Click Here.
Zurn Z609 9" Square Heavy-Duty Drain DXF Drawing File: Click Here.
Zurn Z609 9" Square Heavy-Duty Drain Suffix Option Spec Sheets:
- Z609-90: Click Here
- Z609-DG-P: Click Here
- Z609-F: Click Here
- Z609-H: Click Here
- Z609-P-V: Click Here
- Z609-P-V-T: Click Here
- Z609-Y: Click Here.
