Zurn Z349 / ZN349 Terrace Planting Area Drain.

Product Overview

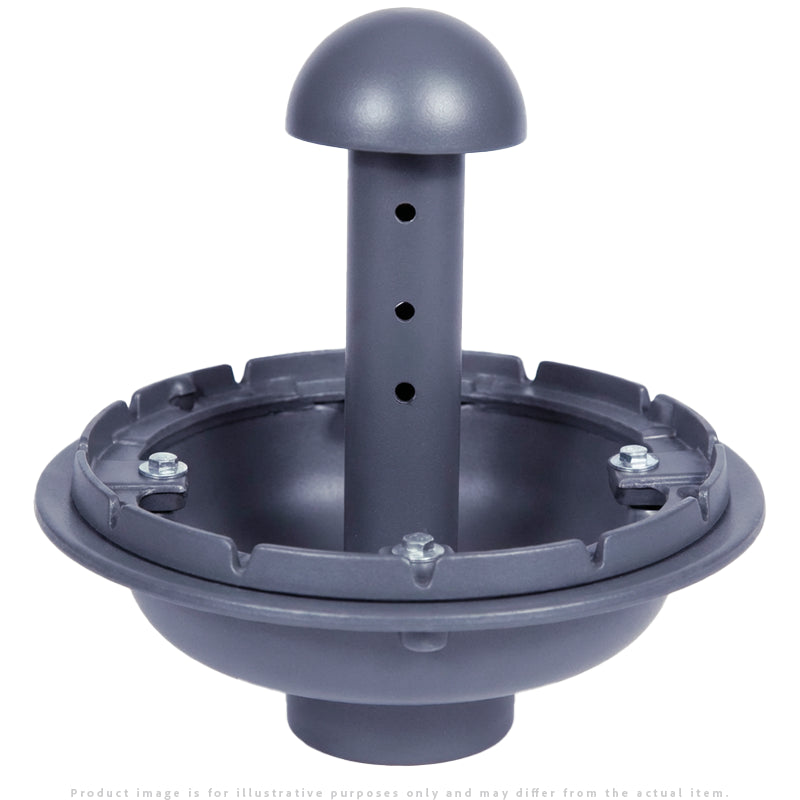

The Zurn Z349 / ZN349 Terrace Planting Area Drain is built for green roofs, planters, and landscaped terraces. Its Dura-Coated cast iron body and 8-inch perforated overflow standpipe with dome provide reliable water management in demanding outdoor environments.

Features & Benefits

• Heavy-duty Dura-Coated cast iron body for long-lasting performance
• 8-inch perforated overflow standpipe with dome for controlled drainage
• Integrated flashing clamp and gravel guard for membrane protection
• Available in No-Hub, Neo-Loc, and Threaded outlet options
• Ideal for terrace, planter, and green roof drainage applications

Specifications

• Model: Z349 / ZN349
• Material: Dura-Coated Cast Iron
• Standpipe Height: 8" (203 mm)
• Top Diameter: 15" (381 mm)
• Outlet Options: No-Hub, Neo-Loc, Threaded
• Body Heights: 5-1/4" NH, 4-9/16" NL (2–4"), 5-7/16" NL (6")
• Approximate Weights: 40–42 lbs
• Alternate SKUs: Z349, Z 349, 349, Z-349, ZN349, ZN 349, ZN-349

Installation Tips

• Choose the correct outlet type to match the piping system.
• Set the drain at proper elevation before waterproofing.
• Use the flashing clamp for a watertight membrane connection.
• Ensure gravel guard elements are installed to prevent debris entry.
• Confirm standpipe height meets project overflow requirements.

FAQs

• What is this drain used for? Designed for terrace, planter, and landscaped drainage areas.
• Does it include a perforated standpipe? Yes, an 8-inch perforated overflow standpipe with dome is included.
• What outlet types are available? No-Hub, Neo-Loc, and Threaded.

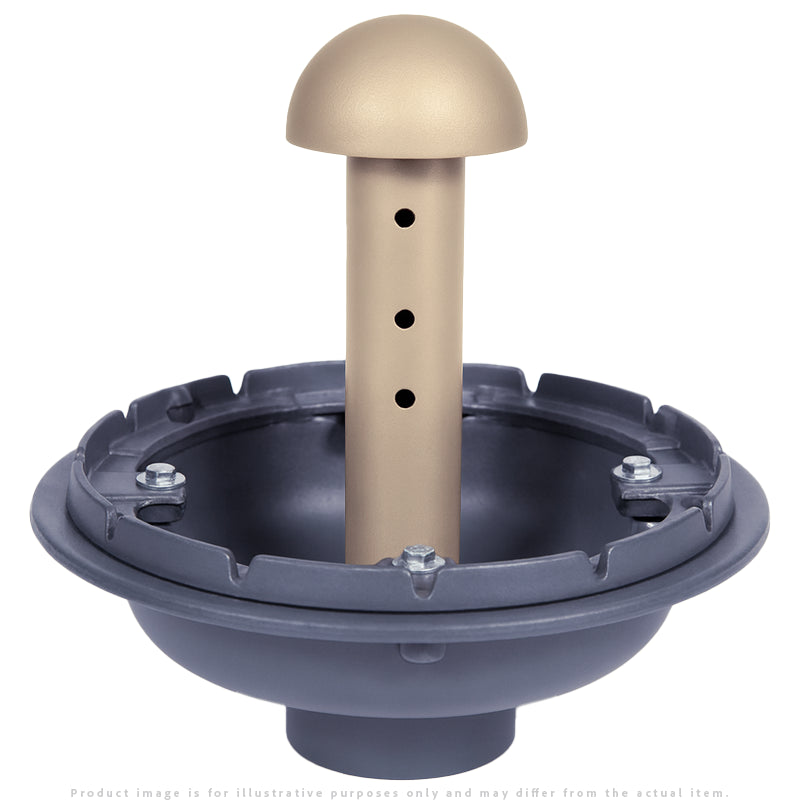

• What is the difference between Z349 and ZN349? ZN349 includes a polished nickel bronze standpipe and dome.
• Is it compatible with waterproofing membranes? Yes, the flashing clamp integrates directly with membrane systems.
