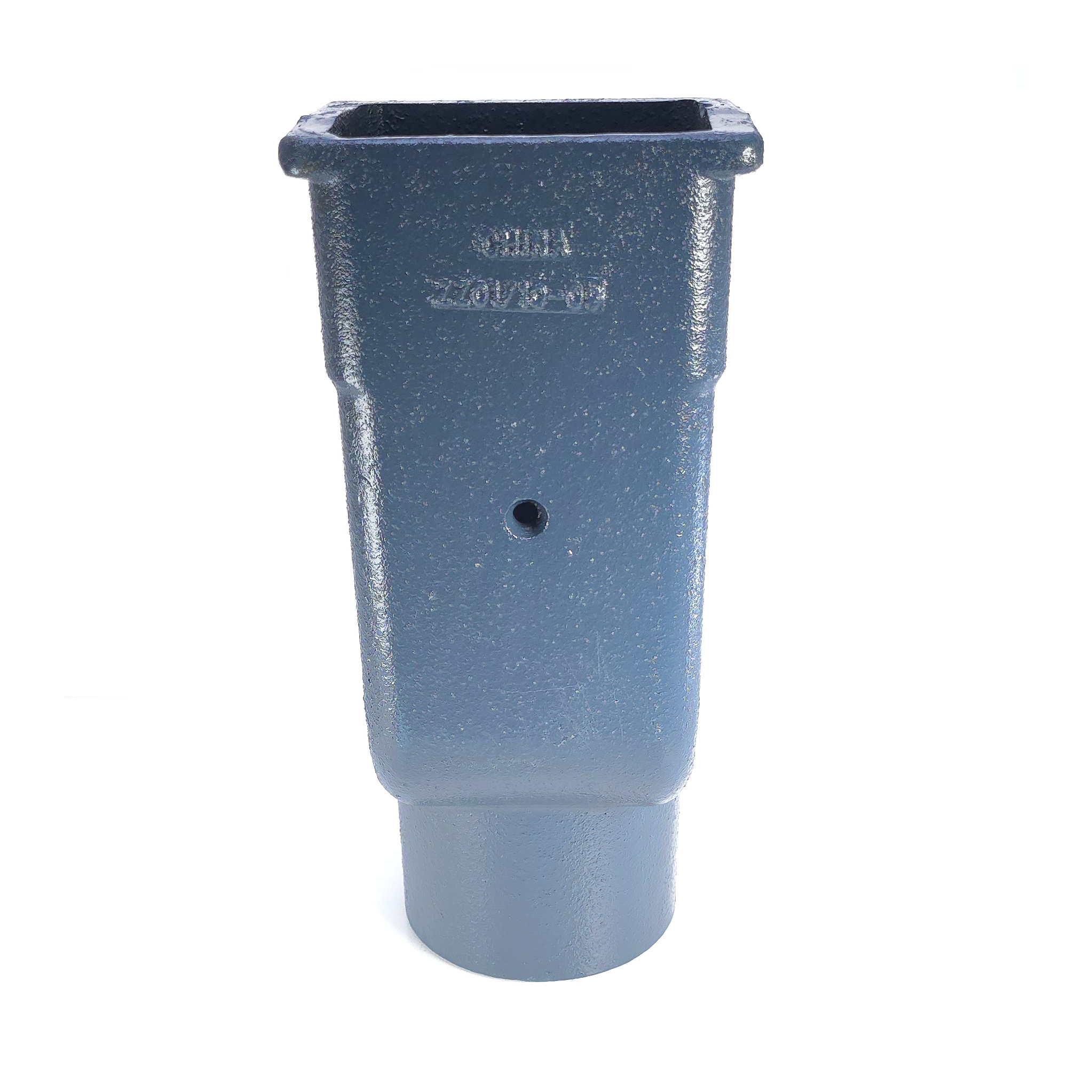

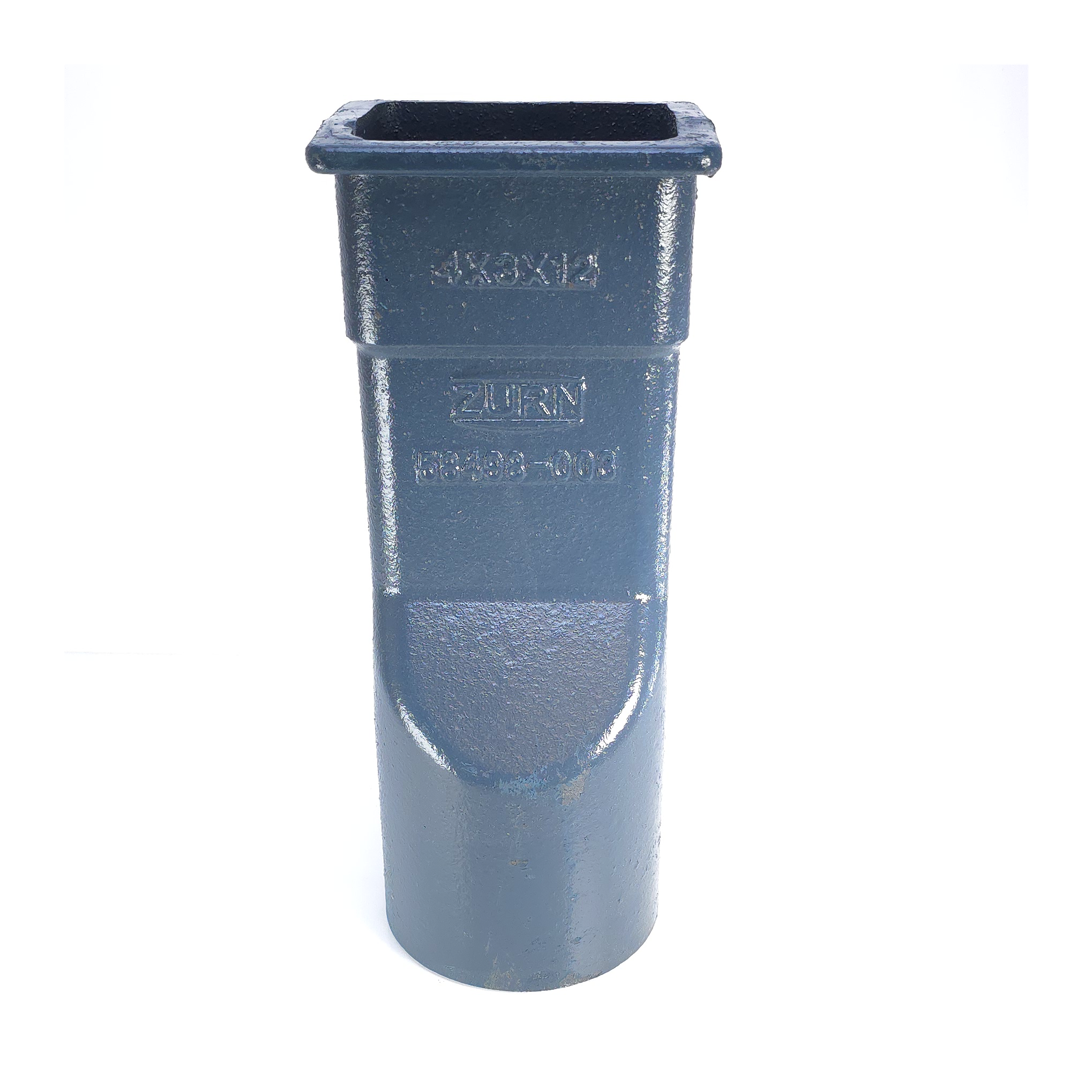

Zurn Z192 4" x 3" Eavestrough Gutter Downspout Boot
Product Overview
The Zurn Z192 4" x 3" Downspout Boot provides a durable transition between rectangular eavestrough gutters and round drainage piping. Constructed from Dura-Coated cast iron, this heavy-duty boot is built to withstand long-term exposure to the elements and resist corrosion. Its integrated strap and pre-cast bolt holes allow for a secure, straightforward installation. Designed for commercial, municipal, and institutional buildings, the Z192 downspout boot ensures reliable water diversion from rooftops into drainage systems.
Features & Benefits
-
Durable Construction: Dura-Coated cast iron body resists wear, impact, and corrosion.
-
Secure Fit: Integrated strap with 1/4" (6 mm) cast holes for flat head bolts.
-
Versatile Transition: Connects 4" x 3" (102 mm x 76 mm) rectangular gutters to 4" (102 mm) round drainage pipe.
-
Multiple Sizes Available: Offered in 12", 18", and 24" lengths to suit different installation needs.
-
Optional Configurations: Available with galvanized finish or cleanout access with plug for added convenience.
Specifications
-
Model: Zurn Z192
-
Size: 4" x 3" [102 mm x 76 mm]
-
Lengths: 12" (305 mm), 18" (457 mm), 24" (610 mm)
-
Material: Dura-Coated Cast Iron (optional galvanized finish)
-
Approximate Weights: 14 lbs (6 kg), 20 lbs (9 kg), 27 lbs (12 kg)
-
Connection: 4" (102 mm) No-Hub outlet
-
Optional Accessories: Cleanout access with plug (-CA)
Installation Tips
-
Ensure the boot is securely anchored using flat head bolts through the 1/4" (6 mm) cast holes.
-
Confirm outlet alignment with the connected drainage pipe to prevent flow restriction.
-
For added corrosion resistance, specify the galvanized option (-G).
-
If maintenance access is required, consider the cleanout access (-CA) configuration.
FAQs
Q: Can this boot be used with plastic or aluminum gutters?
Yes, the Z192 is designed to connect standard 4" x 3" downspouts to 4" drainage pipe, regardless of gutter material.
Q: Is the cast iron body corrosion resistant?
Yes, it features a Dura-Coated protective finish, with an optional galvanized version for harsher environments.
Q: Are different lengths available?
Yes, choose from 12", 18", or 24" lengths to meet your project requirements.
Technical Documentation:
- Zurn Z192 4" x 3" Specification Submittal
- Zurn Z192 4" x 3" Suffix Option Specification Submittal
