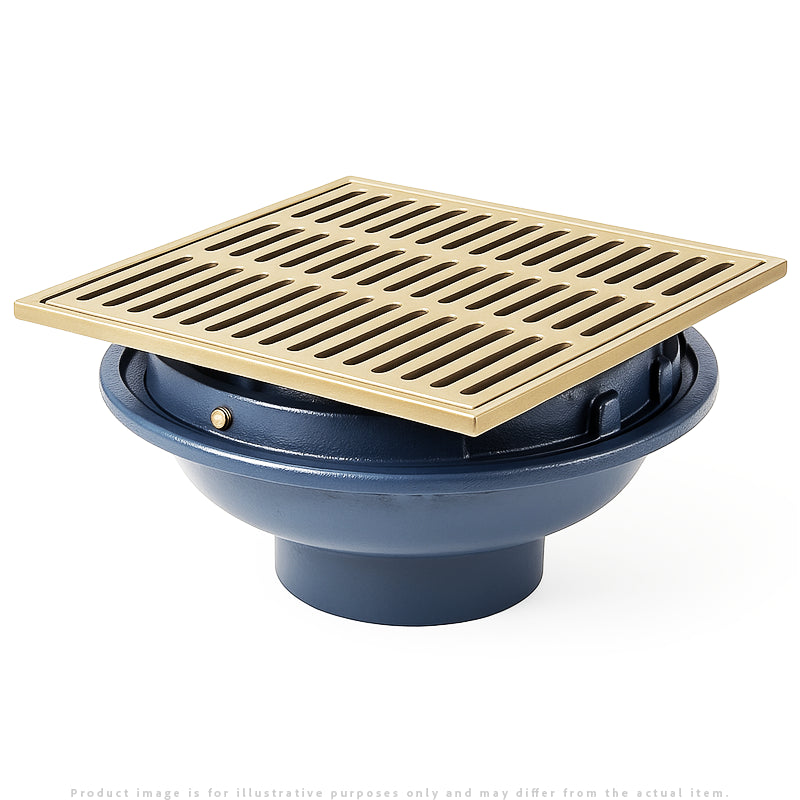

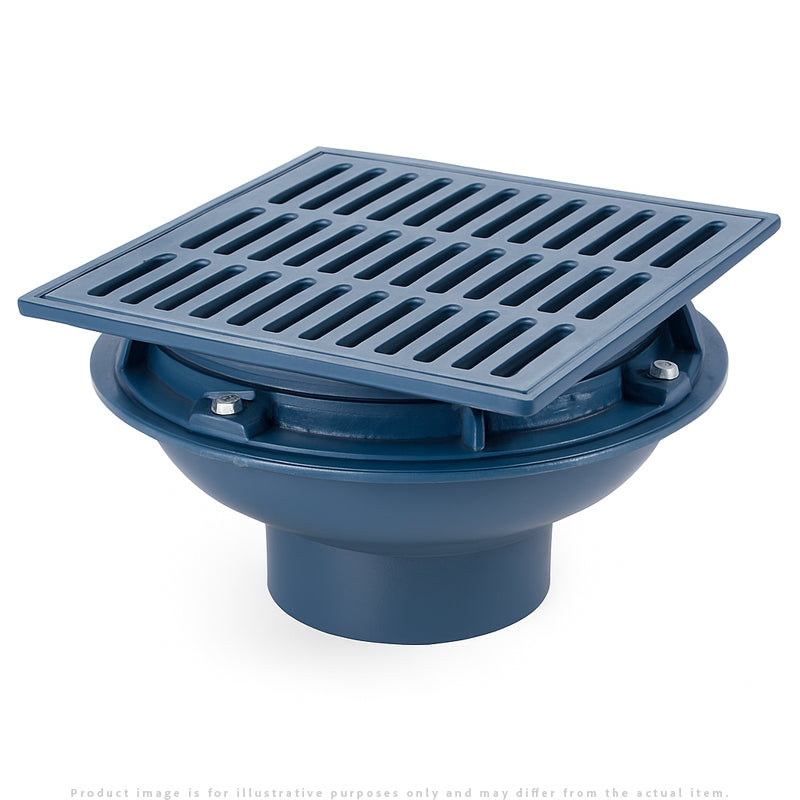

Zurn Z150 / ZN150 14" Square Promenade Deck Drain with Heel-Proof Grate.

Product Overview

The Zurn Z150 / ZN150 Series Promenade Deck Drain provides reliable drainage for terraces, plazas, walkways, and commercial outdoor surfaces. Available with a Dura-Coated cast iron top (Z150) or a premium polished nickel bronze top (ZN150), this 14-inch heel-proof drain features a rotatable frame, seepage openings, and a sediment bucket for long-lasting performance.

Features & Benefits

• Two finish options: Cast Iron (Z150) or Polished Nickel Bronze (ZN150)
• 14" heel-proof duresist grate for pedestrian safety
• Rotatable frame for perfect alignment with deck surfaces
• Seepage openings help relieve moisture beneath deck materials
• Heavy-duty Dura-Coated cast iron body
• Sediment bucket included to reduce clogs
• Available outlets: NH No-Hub

Specifications

• Models: Z150 (Cast Iron Top), ZN150 (Nickel Bronze Top)
• Top Size: 14" square
• ZN150 Adjustments: +3/16" to 2" dim, +3/8" to 14" dim
• Material: Dura-Coated Cast Iron Body
• Grate Type: Heavy-duty heel-proof duresist
• Weight: 62–63 lbs
• Grate Open Area: 44 in²
• Outlet Options: IC, IP, NH, NL

Installation Tips

• Select preferred finish before installation.
• Set drain elevation to match finished deck height.
• Use frame clamps during deck pour or paver placement.
• Rotate the frame for aesthetic alignment.
• Clean sediment bucket regularly.

FAQs

• What is the difference between Z150 and ZN150? Z150 has a cast iron top; ZN150 features a polished nickel bronze top.
• Is the grate heel-proof? Yes, designed for pedestrian safety.
• Does this include a sediment bucket? Yes, included standard.
• Can the frame rotate? Yes, for perfect alignment.
• Which outlets are available? IC, IP, NH, and NL.
