Zurn Z1350 Encased Narrow Wall Hydrant – 3/4" FNPT Inlet, Stainless Steel Box.
Product Overview
The Zurn Z1350 Encased Narrow Wall Hydrant delivers durability, security, and efficiency for moderate climate applications. Built with a rugged bronze body and housed in a lockable stainless steel box, this hydrant ensures long-lasting performance in commercial, residential, and municipal settings. Designed specifically for narrow wall installations (minimum 4"), the Z1350 combines compact design with robust features like a screwdriver stop valve, replaceable seat washer, and a key-operated control valve.
Perfect for facility managers, contractors, and property owners, this hydrant offers reliable water access with enhanced protection against unauthorized use.
Features & Benefits
-
Secure Access: Key-operated valve with lockable stainless steel box prevents tampering.
-
Space-Saving Design: Ideal for narrow wall installations with 4" minimum thickness.
-
Durable Build: Bronze body with all-bronze interior parts and replaceable seat washer for extended life.
-
Standard Compatibility: 3/4" FNPT inlet and 3/4" male hose connection fit most common hose fittings.
-
Moderate Climate Ready: Designed for regions without extreme freeze conditions.
Specifications
-
Model: Zurn Z1350
-
Inlet Size: 3/4" FNPT
-
Outlet Size: 3/4" Male Hose Thread
-
Material: Bronze body, all-bronze interior, stainless steel box
-
Wall Thickness Requirement: Minimum 4 inches
-
Operating Pressure: Up to 125 psi
-
Temperature Range: 33°F to 130°F (0.5°C to 54°C)
-

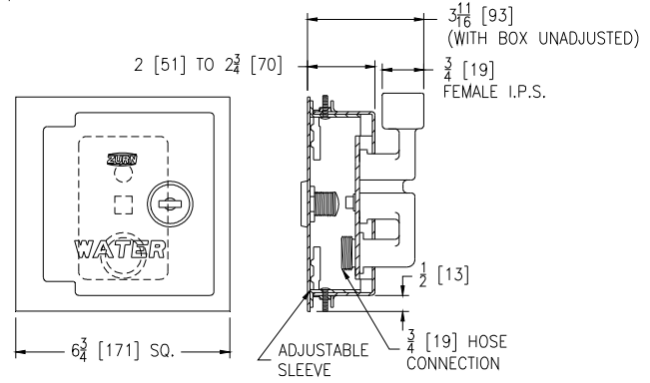

Dimensions: 6-3/4" W x 6-3/4" H
-
Weight: ~4 lbs (1.8 kg)
-
Certifications: IAPMO Listed, UPC Listed
Installation Tips
-
Always caulk inside joints after hydrant box installation to prevent leaks.
-
Use a quality sealant like GE Silicone II Aluminum and Metal to seal seams and gasketed areas.
-
Follow the manufacturer’s installation guide for best results.
-
For consistent performance, inspect and maintain the hydrant regularly.
FAQs
Q: Is the Z1350 suitable for freezing climates?
A: No. This model is designed for moderate climates only.
Q: What wall thickness is required?
A: A minimum of 4 inches is necessary for proper installation.
Q: Does it include a vacuum breaker?
A: No. A vacuum breaker is available as an optional accessory.
Q: How is unauthorized use prevented?
A: A key-operated control valve and cylinder lock protect against tampering.
Applications
-
Commercial buildings
-
Multi-family residences
-
Schools and universities
-
Healthcare facilities
-
Public parks and recreation areas
