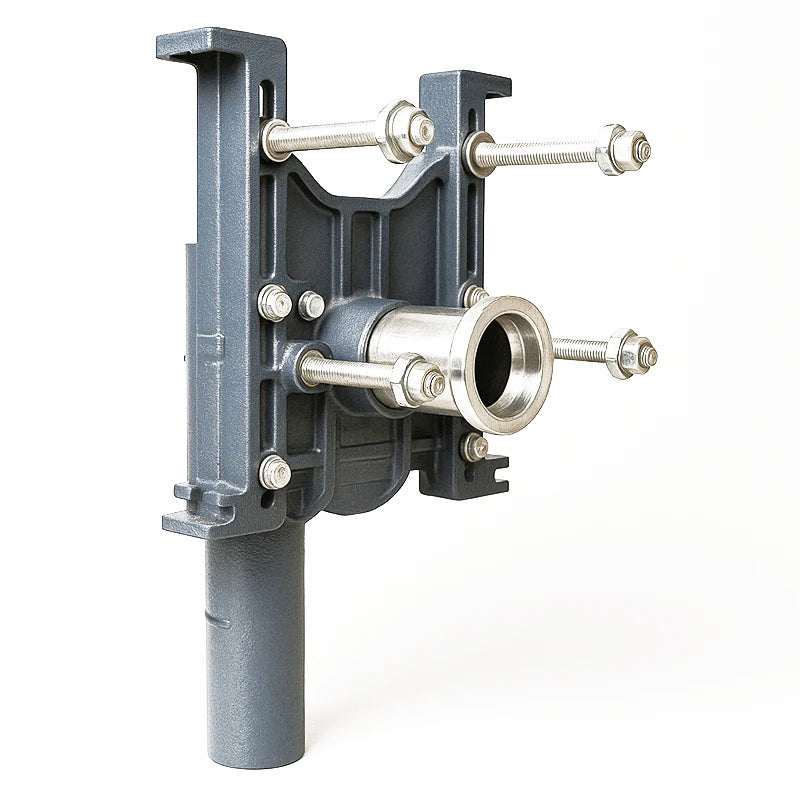

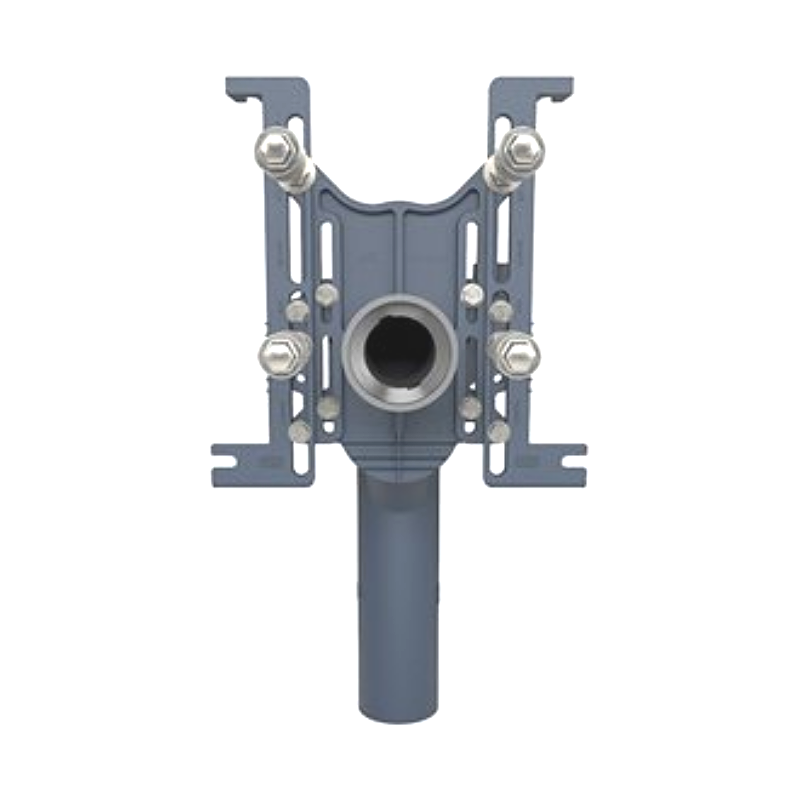

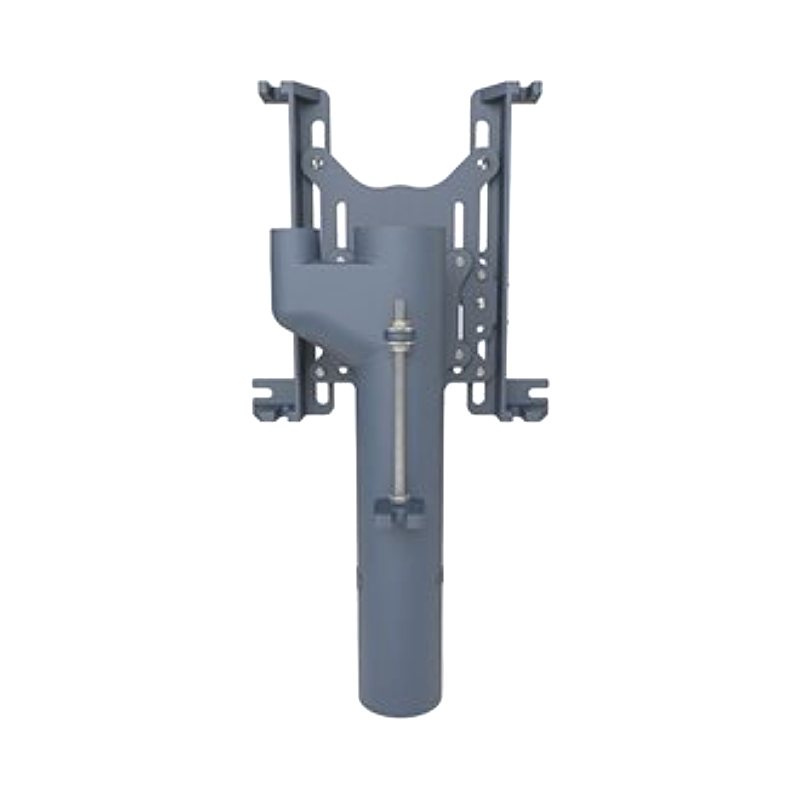

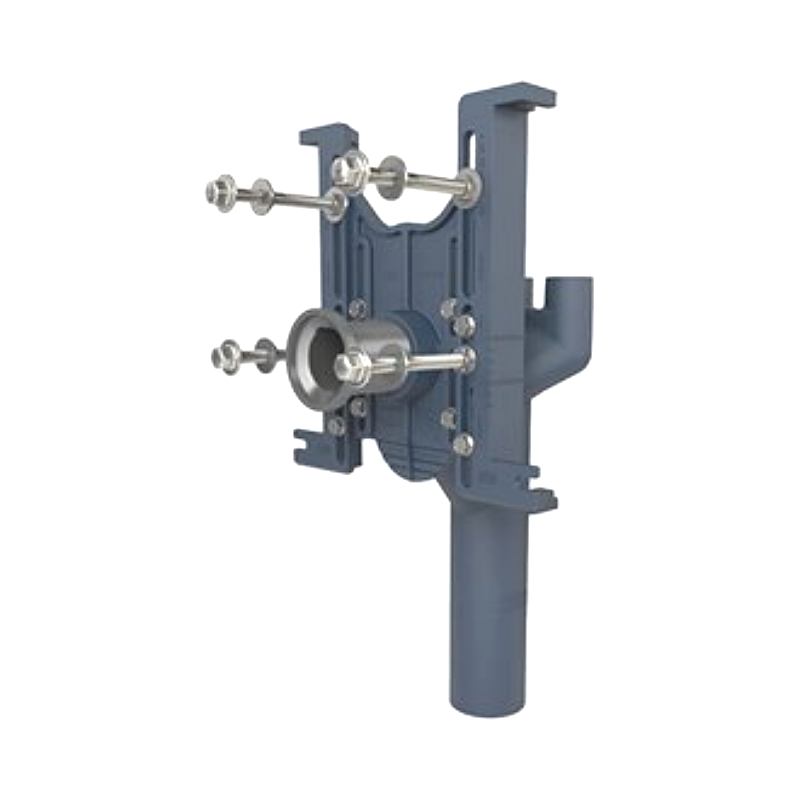

Zurn Z1202-N EZCarry™ High Performance Water Closet Carrier, Adjustable Vertical Siphon Jet, 4" No Hub.
Features & Benefits:
- Propel waste up to three times farther, reducing the possibility of low-flow system clog for overall plumbing system protection
- Protect facilities from excessive loading with standard system design for loading up to 500 lb.
- Install faster with labor saving features on a 30% lighter system
- Reduce maintenance emergencies with carriers designed to optimize waste line carry
- Maintain a sanitary environment with wall-mounted fixture
- Test the system and cut the coupling to length from the front with Zurn's patent-pending EZ-SET™ coupling option
- Reduce adjustment time with factory-assembled trim and universal feet pre-set at 5-1/2" rough-in height
Product Specifications:
Zurn Z1202-N EZCarry™ High Performance Water Closet Carrier, Adjustable Vertical Siphon Jet, 4" No Hub Engineering Specification: ZURN Z1202-N4 EZCarryTM vertical siphon jet water closet carrier system with high performance waterway and 4" [102mm] no-hub connections. System includes Dura-Coated cast iron main fitting with hydro-mechanically optimized sweep and extended 2" [51mm] vent, adjustable gasketed faceplate, universal floor mounted pre-fab slotted foot supports, heavy-duty 1/2" [13mm] rear anchor tie down, fixture bolts, trim, stud protectors, bonded “Neo-Seal” gasket, and corrosion resistant, adjustable 3" [76mm] dia. X 6" [152mm] coupling with integral test cap designed to increase flow velocity and line carry. EZCarry system complies with the requirements of ASME A112.6.1M up to a 500 lbs [227 kg] static load rating.
Special Notes:
- See Zurn Carrier/Fixture Rough-In information for specific rough-in dimensions.
Inlet / Vent Variants:
- Z1202-N4 4" No-Hub Stack, Single Inlet, 2" Right Hand Vent.
- Z1202-ND4 4" No-Hub Stack, Double Inlets, 2" Vent (Back-to-Back Installation).
- Z1202-1NL4 4" No-Hub Stack, Single Inlet, 4" Left Hand Side Inlet, 2" Left Hand Vent.
- Z1202-1NR4 4" No-Hub Stack, Single Inlet, 4" Right Hand Side Inlet, 2" Right Hand Vent.
- Z1202-1ND4 4" No-Hub Stack, Double Inlets, 4" Side Inlet, 2" Vent (Back-to-Back Installation).
- Z1202-2N4 4" No-Hub Stack, Single Inlet, Two 4" Side Inlets, 2" Right Hand Vent.
- Z1202-2ND4 4" No-Hub Stack, Double Inlets, Two 4" Side Inlets, 2" Vent (Back-to-Back Installation).
Technical Documentation:
- Zurn Z1202-N: Specification Submittal
- Zurn Z1202-N: Suffix Option Specification Submittals
- Zurn Z1202-1N_4: Side Inlet Specification Submittal
- Zurn Z1202-2N_4: Two Side Inlets Specification Submittal
- Zurn Z1202-ND4: Back-to-Back Specification Submittal
- Zurn Z1202-1ND4: Back-to-Back, Side Inlet Specification Submittal
- Zurn Z1202-2ND4: Back-to-Back, Two Side Inlets Specification Submittal
- Zurn Z1202-N: Installation Instructions
- Zurn Z1202-N: DWG Drawing File
- Zurn Z1202-N: Brochure
- Zurn Z1202-N: Sell Sheet
- Zurn Z1202-N: CSI Specification
- Zurn Z1202-N: Carrier Engineering Guide
Media:
Zurn Z1202-N EZCarry™ High Performance Water Closet Carrier Video:
Cross Reference:
- Ancon Watts ISCA-121, CA-121.
- JR Smith 0230Y.
- Mifab MC-12.
