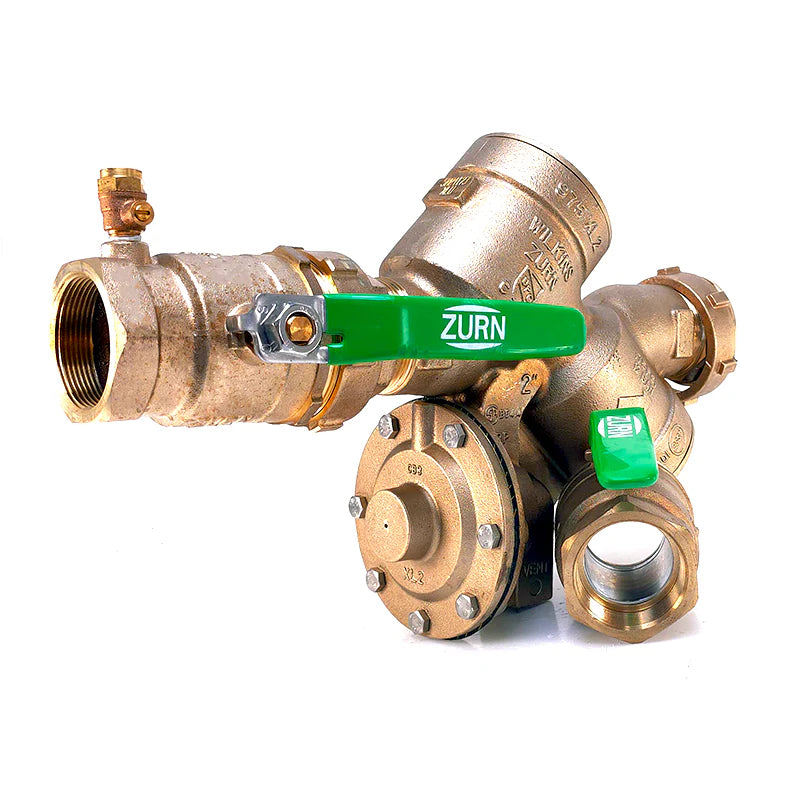

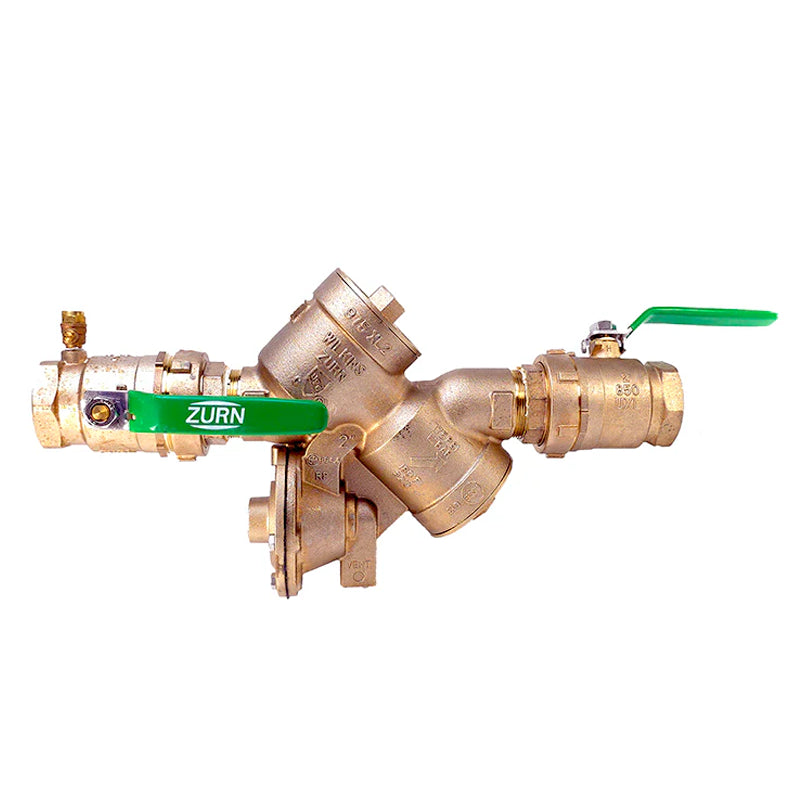

Zurn Wilkins 1-1/4" 975XL2U RPZ Reduced Pressure Principle Backflow Preventer with Union Ball Valves (Lead-Free).
Product Overview
The Zurn Wilkins 1-1/4" 975XL2U RPZA offers superior protection against high hazard backflow conditions. Compact and lead-free, this backflow preventer is designed with a wye-pattern body and union ball valves for simplified installation and maintenance.
The 1-1/4" size is commonly specified for mid-size commercial systems, offering reliable protection where water safety is critical.
Features & Benefits
-
Compact design for space-limited mechanical rooms
-
Union ball valves enable fast servicing and replacement
-
Rugged lead-free bronze construction
-
Short lay length reduces retrofit costs
-
Meets all current backflow prevention standards
Specifications
-
Model: 114-975XL2U
-
Size: 1-1/4"
-
Max Pressure: 175 PSI
-
Max Temperature: 180°F
-
Test Pressure: 350 PSI
-
Materials: Bronze body, Noryl™ internals, stainless steel springs
-
Standards: ASSE® 1013, CSA® B64.4, AWWA C511
Installation Tips
-
Install outdoors or indoors with an air gap adapter
-
Provide proper side clearance for testing and maintenance
-
Mount 12"–30" above adequate drains
FAQs
Q: What is the main application for this size?
A: It’s commonly installed in commercial buildings and institutional potable water systems.
