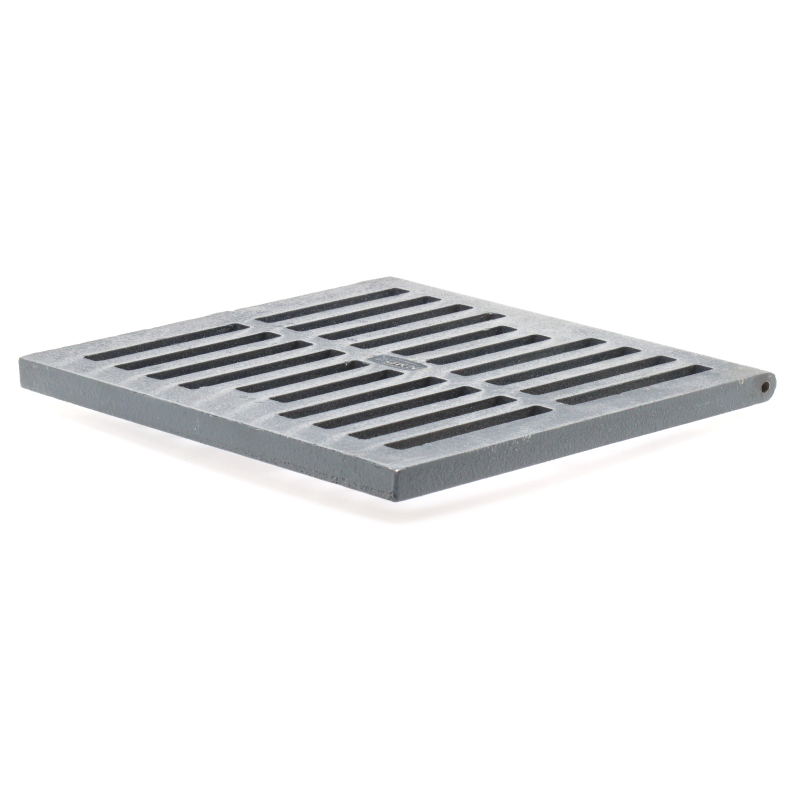

P610-H-GRATE 12" Square Heavy-Duty Ductile Iron Grate – For Z610 Series
The P610-H-GRATE is a high-performance replacement for Z610 and Z610-H-ADJ Series 12" square floor drains, designed to handle demanding environments where strength, safety, and longevity are non-negotiable. Ideal for facilities with dynamic traffic, including forklifts and carts, this cast iron grate offers enhanced durability and reliability.

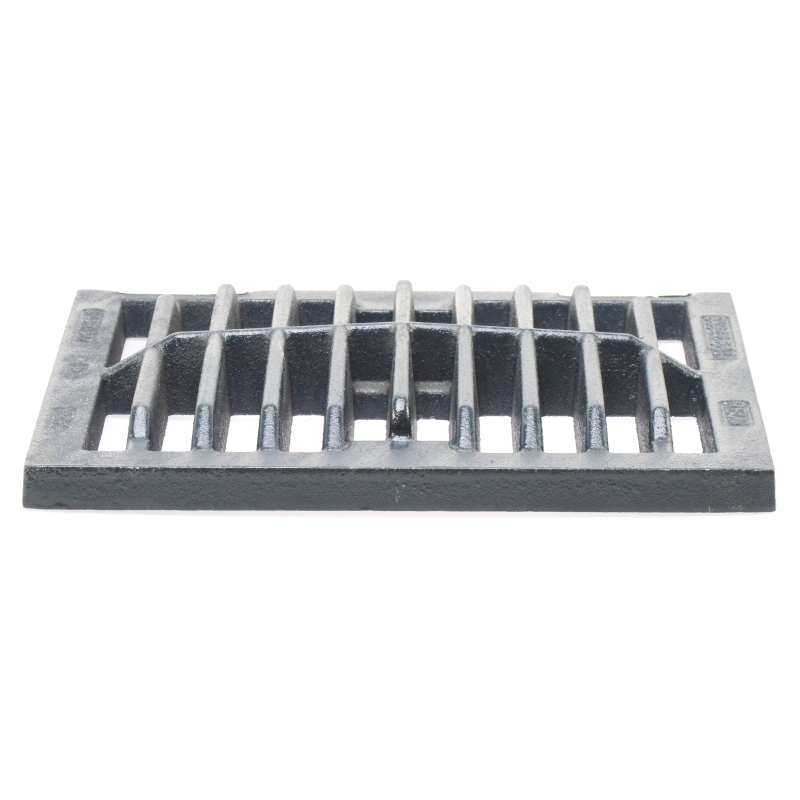

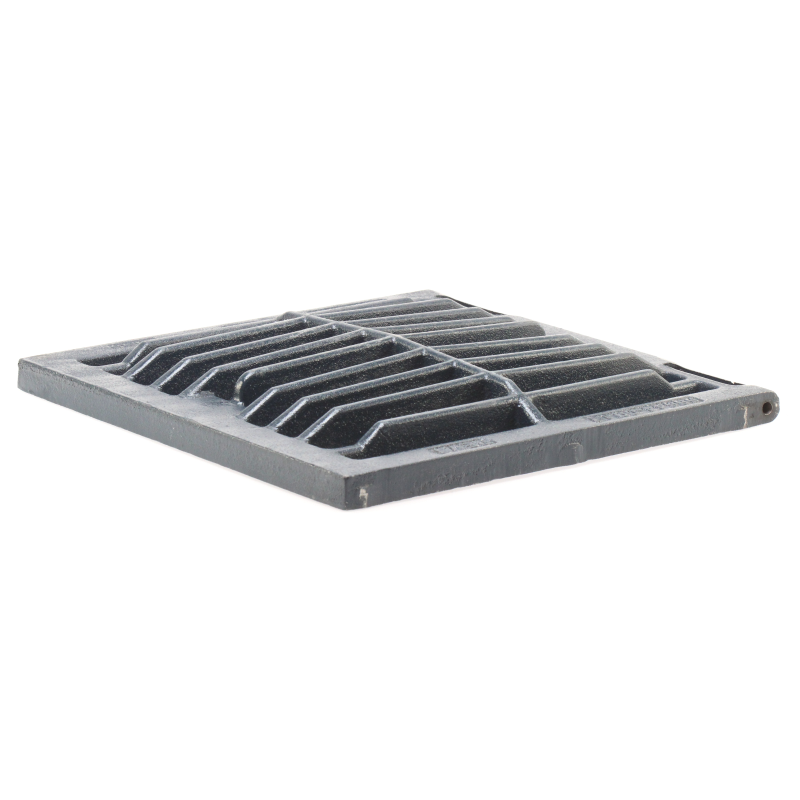

Manufactured from ductile iron with a protective coating, the P610-H-GRATE features a deeper rib pattern on its underside, adding structural reinforcement and increasing its ability to withstand greater loading stress compared to standard slotted grates.
Key Features:
-
Designed for Z610 and Z610-H-ADJ floor drain models
-
Heavy-duty square grate ideal for dynamic traffic areas (e.g., forklifts)
-
Deeper underside rib pattern enhances strength and load handling
-
Ductile iron construction with corrosion-resistant finish
-
Actual dimensions: 11-3/8" x 11-3/8"
-
Rim thickness: 11/16"
-
Open area: 42 square inches for efficient drainage
-

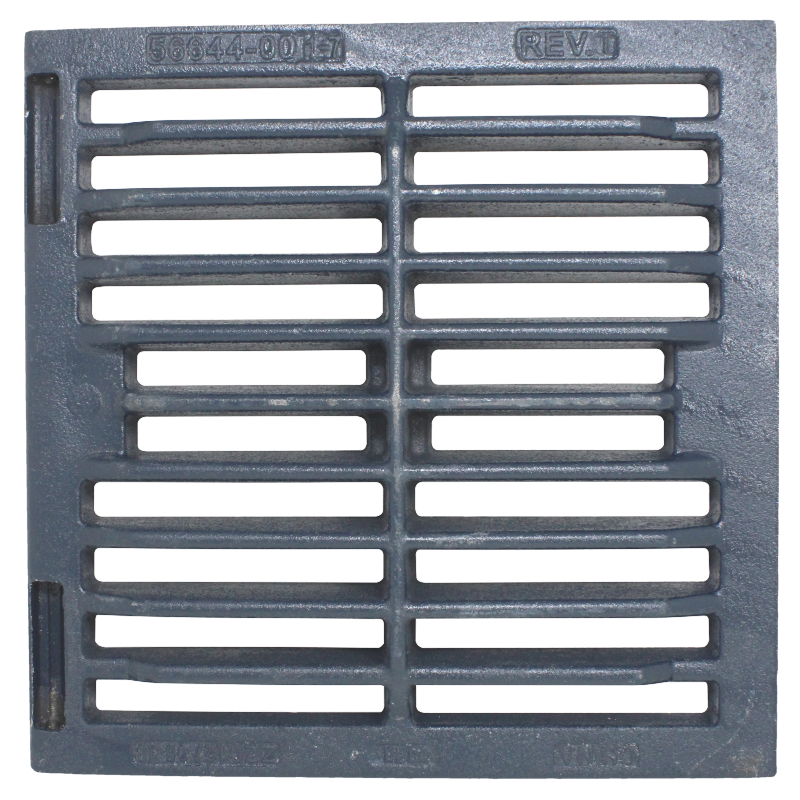

Casting number: 56644-001
-
Tapped for hinge pins – not to be confused with the untapped P610-GRATE
Built for high-use commercial and industrial settings, this replacement grate ensures proper fit, maximum load support, and safe drainage function in the most rugged applications.
