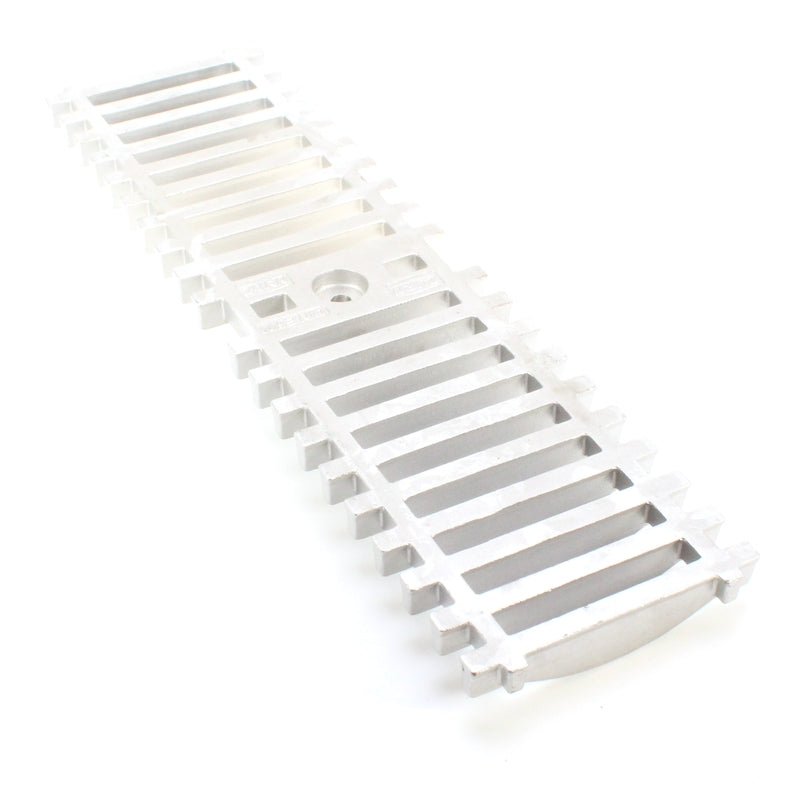

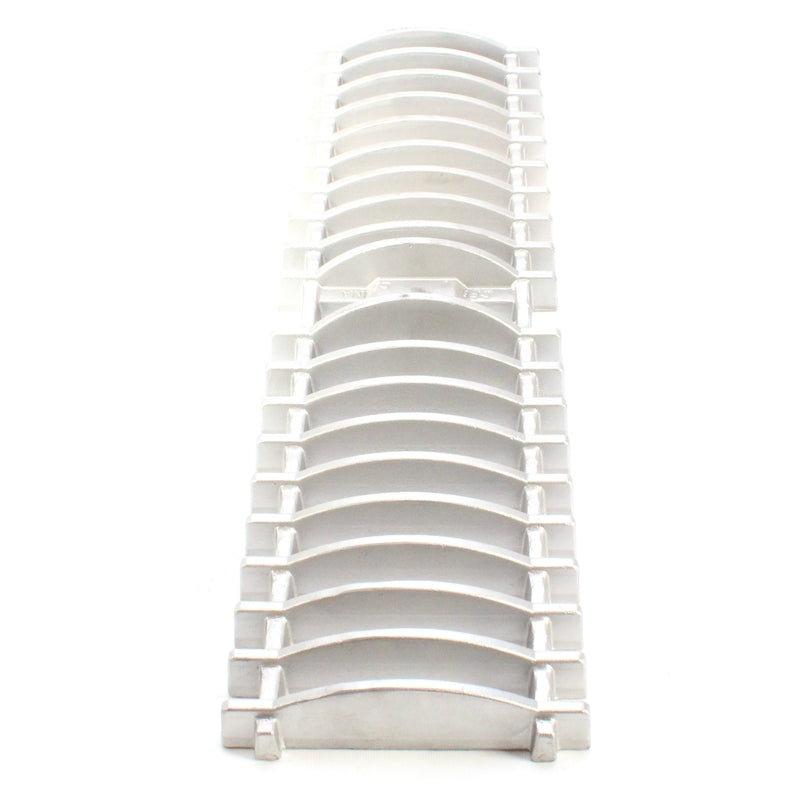

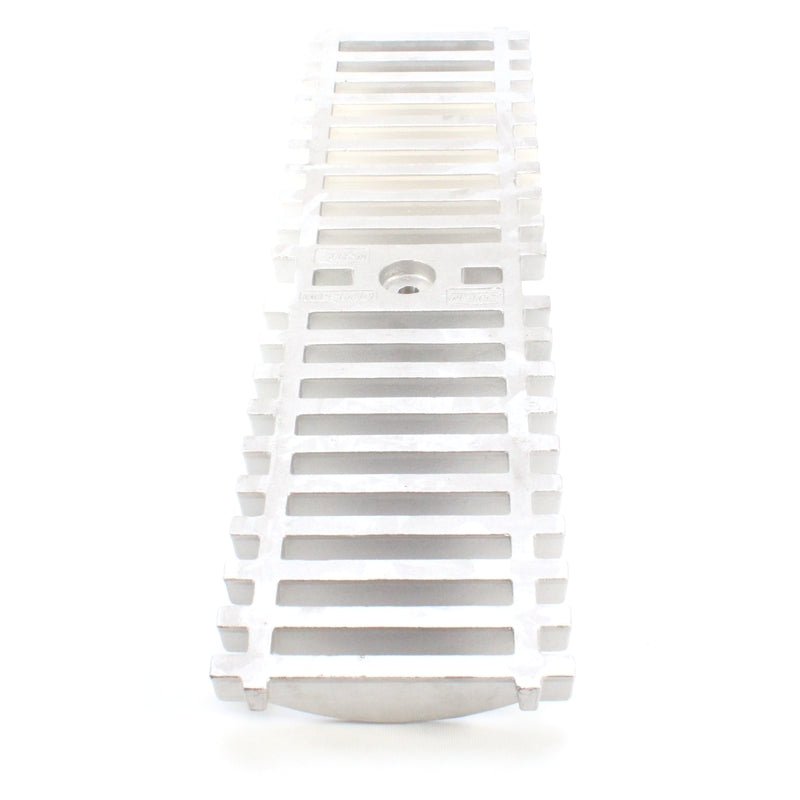

Zurn P6-SBG 6" Wide Stainless Steel Decorative Cast Bar Grate Class E

ZurnSKU: ZUR-P6-SBG

Price:
Sale Price£779.00 GBP
Description

Zurn P6-SBG 6" Wide Stainless Steel Decorative Cast Bar Grate Class E.

Engineering Specification:

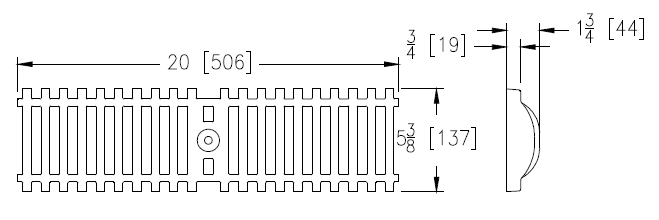

The Zurn P6-SBG Cast Bar, Stainless Steel Grate, is 5-3/8 inches wide by 20 inches long, weighing 9.4 lbs per linear foot. The grate has an open area of 27.7 square inches per linear foot, DIN Rating of E, ANSI Rating of Special Duty, H-20 Load Rated, FAA Load Rated.

Notes:

P6-SBG fits the following Zurn Trench Drain Systems: Z886 (4 Per Channel), Z883 (2 Per Channel).

Material: Stainless Steel
DIN Rating: Class 'E'
Weight: 9.4 lbs/ft.
Open Area: 27.7 in2/ft.
ANSI Rating: Special-Duty
Application: Dynamic Loads
Slot Width / Hole Size: 1/2"
ADA: NO
H-20: YES
FAA: YES

Technical Documentation:

Zurn P6-SBG 6" Wide Stainless Steel Decorative Cast Bar Grate Class E Specification Submittal Sheet: Click Here.

Zurn P6-SBG 6" Wide Stainless Steel Decorative Cast Bar Grate Class E Linear Trench Drain System Technical Catalog: Click Here.
