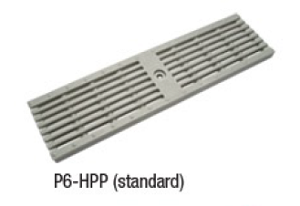

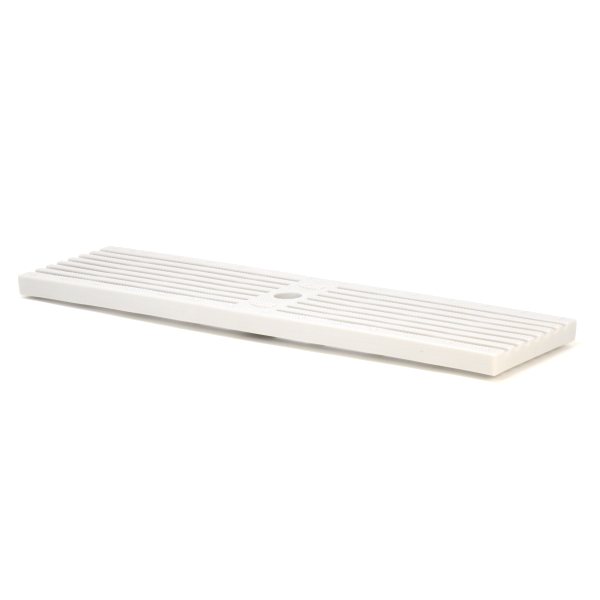

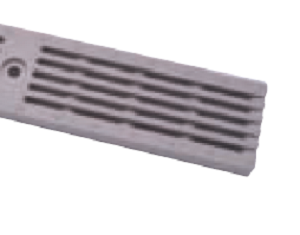

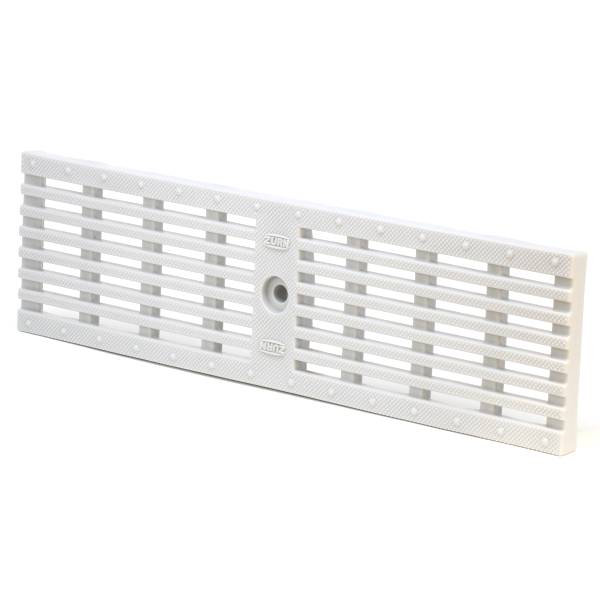

Zurn P6-HPP 6" Wide Heel-Proof Linear Slotted HDPE Grate Class A Light Gray

ZurnSKU: ZUR-P6-HPP

Price:
Sale Price€53,95 EUR
Stock:
In Stock

Zurn P6-HPP 6" Wide Heel-Proof Linear Slotted HDPE Grate Class A Light Gray (#94001).

Engineering Specification:

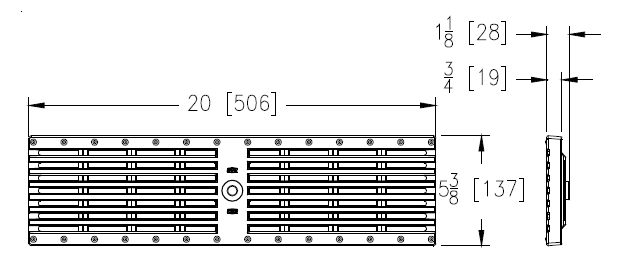

The Zurn P6-HPP Heel-Proof Slotted, High Density Polyethylene (HDPE) grate, is 5-3/8 inches wide by 20 inches long, weighing. 9 lbs per linear foot. The grate has an open area of 14.5 square inches per linear foot, DIN Rating of A, ANSI Rating of Light-Duty, ADA compliant.

Notes:

P6-HPP fits the following Zurn Trench Drain Systems: Z886 (4 Per Channel), Z883 (2 Per Channel).

Material: High Density Polyethylene (HDPE)
DIN Rating: Class 'A'
Weight: 0.9 lbs/ft.
Open Area: 14.5 in2/ft.
ANSI Rating: Light-Duty
Application: Heel-Proof, Pedestrian
Slot Width / Hole Size: 1/4"
ADA: YES
H-20: NO
FAA: NO



Technical Downloads:

  • Zurn P6-HPP Specification Submittal Sheet: Click Here.
  • Zurn P6-HPP Linear Trench Drain System Technical Catalog: Click Here.
