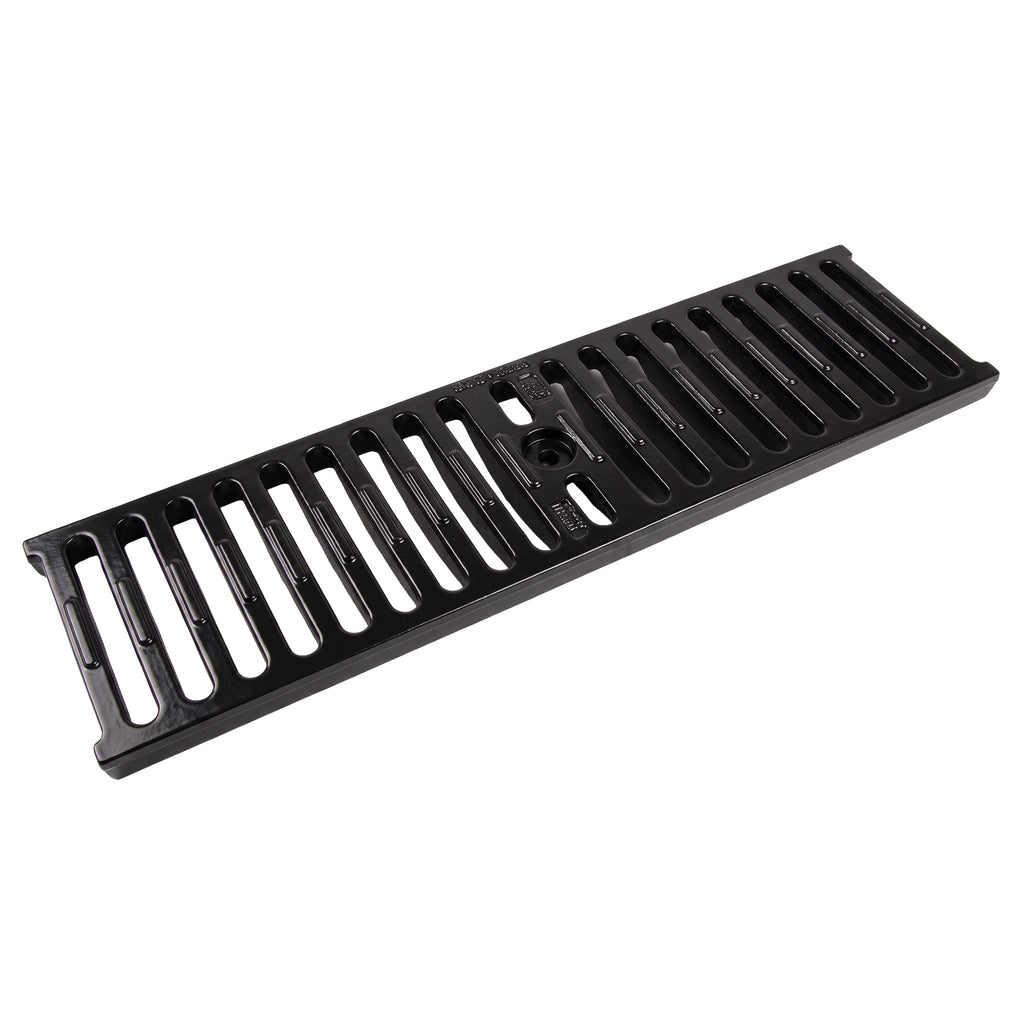

Zurn P6-DGE 6" Wide Ductile Iron Slotted Grate Class E.
Engineering Specification:
Slotted Grate, Ductile Iron Grate, is 5-3/8 inches wide by 20 inches long, weighing 4.5 lbs per linear foot. The grate has an open area of 28.1 square inches per linear foot, DIN Rating of C, ANSI Rating of Heavy-Duty, H-20 Load Rated.
Notes:

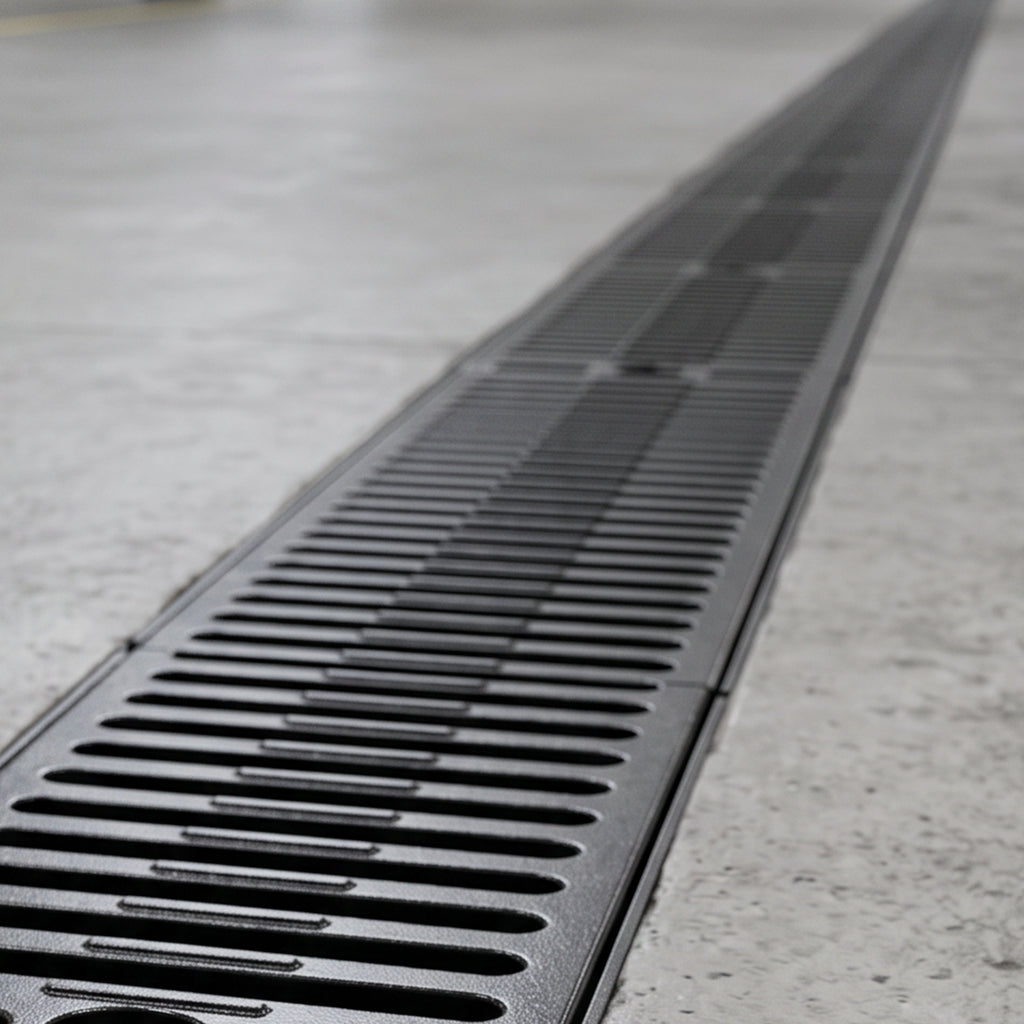

P6-DGE fits the following Zurn Trench Drain Systems: Z886 (4 Per Channel), Z883 (2 Per Channel).
When used for forklift application, the Z886-HDF Heavy-Duty Carbon Steel Frame is Required!
Material: Ducile Iron |
DIN Rating: Class 'E' |
Weight: 6.4 lbs/ft |
Open Area: 27.8 in2/ft. |
ANSI Rating: Special-Duty |
Application: Dynamic :pads |
Slot Width / Hole Size: 1/2" |
ADA: NO |
H-20: YES |
FAA: YES |
Technical Documentation:
Zurn P6-DGE 6" Wide Ductile Iron Slotted Grate Class E Specification Submittal Sheet: Click Here.
Zurn P6-DGE 6" Wide Ductile Iron Slotted Grate Class E Linear Trench Drain System Technical Catalog: Click Here.
