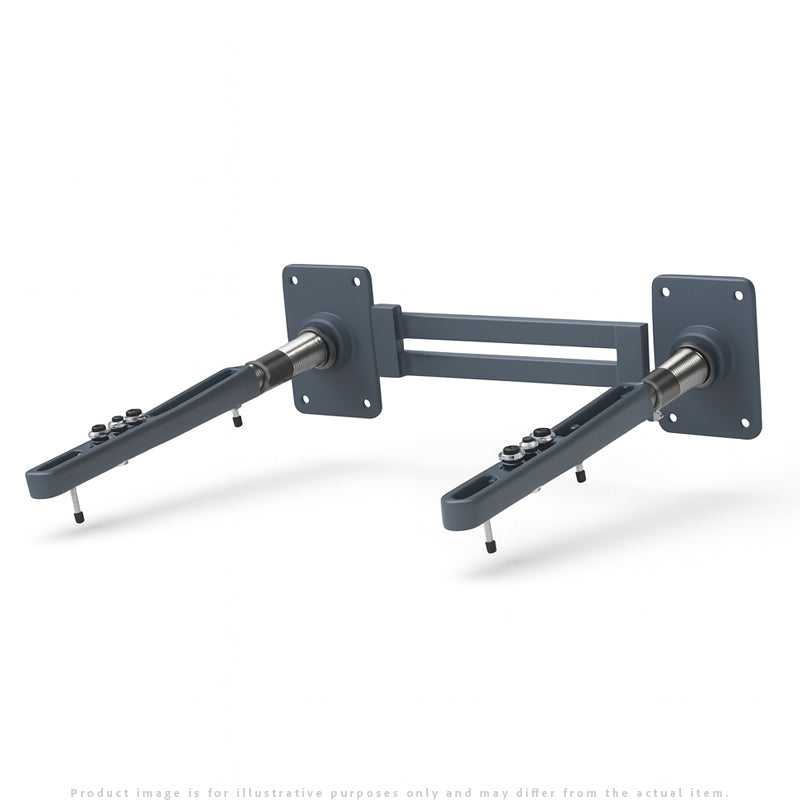

Watts CA-462 Wall Mounted Concealed Arm Lavatory Carrier

Watts CA-462 Wall Mounted Concealed Arm Lavatory Carrier – Commercial Fixture Support

Product Overview

The Watts CA-462 Wall Mounted Concealed Arm Lavatory Carrier provides secure and reliable support for wall-hung sinks in commercial and institutional applications. Built with an adjustable epoxy-coated cast iron wall plate and concealed support arms, this carrier is designed for strength, flexibility, and long-term durability.

Engineered to fit most 20" x 18" and 19" x 17" lavatories, the CA-462 ensures that wall-hung lavatories are properly supported, preventing fixture strain and maintaining compliance with commercial plumbing standards. Its concealed installation design allows the carrier to be mounted on a rough wall and hidden behind the finished wall surface, delivering both structural integrity and a clean aesthetic.

Features & Benefits

• Heavy-duty construction with epoxy-coated cast iron wall plate for long-lasting durability

• Adjustable wall bracket ensures flexible installation in varying site conditions

• Standard arms accommodate most commercial lavatory sizes (20x18 and 19x17)

• Concealed installation provides a cleaner finished appearance in restrooms

• Designed for commercial use in schools, hospitals, office buildings, and institutional facilities

Specifications

• Model: CA-462

• Type: Wall-mounted concealed arm lavatory carrier

• Construction: Epoxy-coated cast iron wall plate with concealed arms

• Compatibility: Most 20" x 18" and 19" x 17" lavatories

• Installation: Installs on rough wall, concealed behind wall finish

• Compliance: Engineered for commercial fixture support standards

Installation Tips

• Install the carrier directly onto the rough wall before applying the wall finish.

• Adjust the wall bracket to align with the lavatory mounting dimensions.

• Ensure the arms are properly positioned and secured for maximum stability.

• Verify wall strength and anchor points to handle fixture load.

• Always follow local plumbing codes and installation requirements.

FAQs

Q1: What types of lavatories does the Watts CA-462 support?
It accommodates most 20x18 and 19x17 lavatories, commonly used in commercial restrooms.

Q2: Is this carrier visible after installation?
No, it is designed for concealed installation behind the wall finish for a clean appearance.

Q3: What material is the wall plate made of?
The carrier includes an epoxy-coated cast iron wall plate for strength and corrosion resistance.

Q4: Can the arms be adjusted?
Yes, the carrier features an adjustable wall bracket for flexible installation.

Q5: Where is this product typically used?
It is ideal for commercial and institutional facilities, including hospitals, schools, office buildings, and public restrooms.

Technical Downloads:

• Watts CA-462: Specification Sheet
