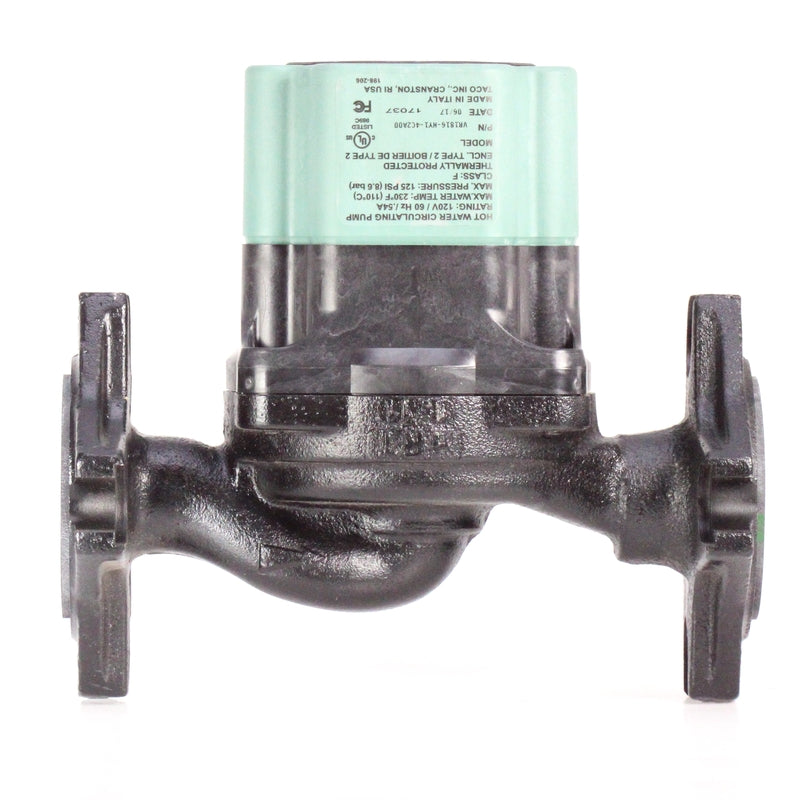

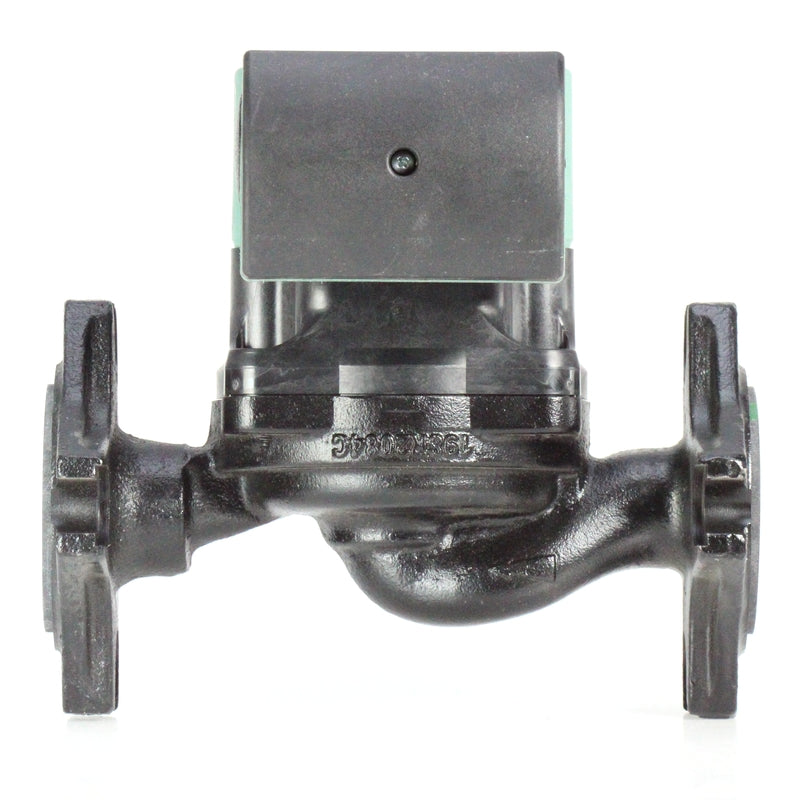

Taco 0015E3-2F4 ECM Cast Iron High-Efficiency Circulator Pump

Features:

The 00e® series — VR1816 circulator is an infinitely variable speed, high-efficiency wet rotor circulator with an ECM permanent magnet motor. Operating modes include infinitely variable fixed speed and self-adjusting constant pressure or proportional pressure variable speed

• High-efficiency ECM motor uses up to 85% less electricity
• Infinitely variable speed settings to fine tune flow for any system
• SureStart^®, a Taco exclusive feature, is your no-callback safety net. It automatically purges air and unblocks the pump to keep it trouble-free.
• BIO Barrier^® filter protects pump from system contaminants
• Easy to use dial to set operating speed or pressure control
• Operates in 3 Different Modes:
  • Infinitely Variable Fixed Speed
  • Constant Pressure
  • Self-adjusting, Variable Speed
  • Proportional Pressure — Self-adjusting, Variable Speed
• 5 color LED displays:
  • Operating mode (Blue, Orange or Green)
  • Error code diagnostics (Red or White)
• Use with a Taco ZVC Zone Valve Control or SR Switching Relay for ON/OFF operation
• Dual electrical knock-outs
• 6″ stranded wire leads for easy wiring
• Double Insulated. No ground necessary.
• Integral Flow Check (IFC^®) included
• Whisper quiet operation
• Optional 2-way flange reduces SKU’s and provides universal fit-up to any flange position

Specifications:

• Maximum Shut-off Head - 18 feet
• Maximum Flow - 16 gpm
• Maximum Operating Pressure - 125 psi (8.6 bar)
• Maximum Water Temp: 230°F (110°C)
• Minimum Water Temp: 36°F (2°C)
• Electrical specifications:
• Voltage: 120V, 60 Hz Single phase
• Operating Power: 4W - 44W
• Max. AMP Rating: 0.54
• Equipped with a cast iron casing and should be used for closed loop systems only
• Not suitable for chilled water or open loop potable water systems
• Taco circulator pumps are for indoor use only
• Acceptable for use with water or maximum of 50% water/glycol solution

Materials of Construction:

• Casing - Cast Iron
• Stator Housing - Composite
• Cartridge - Composite
• Impeller - Composite
• Shaft - Ceramic
• Bearings - Carbon
• Thrust Bearing - Ceramic
• O-Ring & Gaskets - EPDM
• Integral Flow Check (IFC® ):
• Body, Plunger - Acetal
• O-ring Seal - EPDM
• Spring - Stainless Steel
