Mifab XL-MI-G-PL-750 BigMax 75 GPM 750 Lbs. Capacity HDPE Grease Interceptor

MIFAB® XL-MI-G-PL-750 BigMax 75 GPM [284 LPM], 750 Lbs. (105 Gallon) Large Capacity HDPE Grease Interceptor for Above or Below Ground Installation with Lifetime Warranty, Made in the USA.

QUICK SHIP PRODUCT

• Typically ships in 24 to 48-hours with standard configuration
• Ships from Chicago, Illinois
• Multiple option add-ons add to delivery lead-time
• Contact Us to confirm delivery lead-time requirements

Product Overview:

• 4” inlet/outlet Sch. 40 (No-Hub)
• 6" connections available
• Supplied with PDI plate and external vented flow control fitting
• Max flow rate: 75 GPM
• Liquid capacity: 140 Gallons
• Max grease capacity: 750 lbs., (102.74 Gallons)
• Unit weight w/std. cover: 150 lbs.
• Max solids/sediment capacity: 70 Gallons
• H-20, 20,000 lb. load rated, bolted, gas/water tight composite cover.
• Maximum operating temperature 190o F continuous.

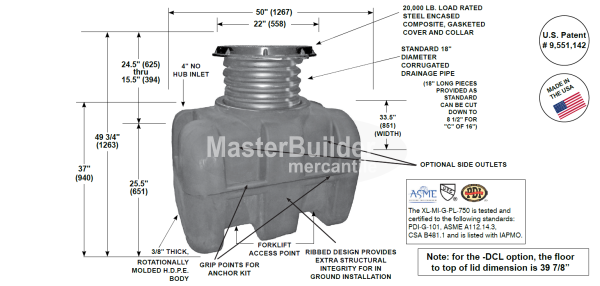

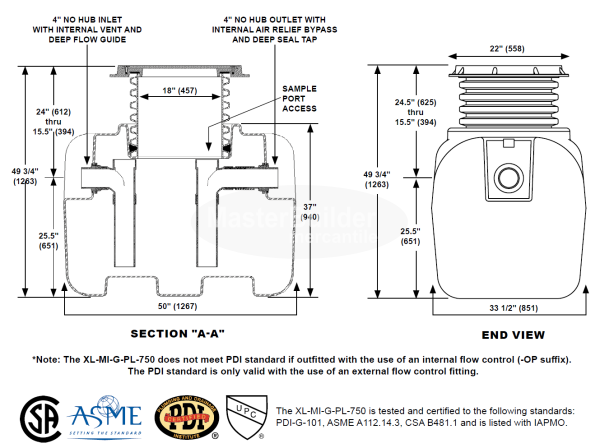

• Dimension (L x W x H): 50" [1267mm] x 33-1/2" [851mm] x 49-3/4" [1263mm]

Features & Benefits:

• Lifetime warranty
• Made in the USA
• External vented flow control fitting
• Sample port access provided standard
• 20,000 Lb. H-20 load rated lid
• Ribbed body design delivers structural integrity for in-ground installations
• 33-1/2" narrow width
• Extra rough-in dimension
• Forklift access points molded into the interceptor base
• Tested and Certified to PDI, ASME and CSA standards
• Listed with IAPMO and ICC
• Two grip points are provided on each side for easy handling
• Multiple inlet / outlet options

Product Specification:

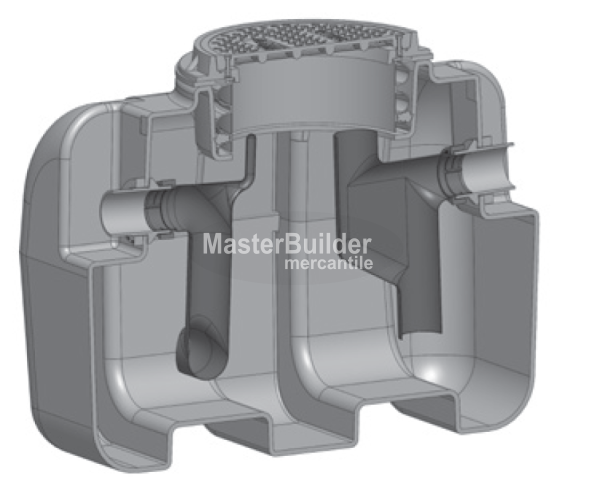

MIFAB® XL-MI-G-PL-750, 75 GPM sand and grease interceptor with 750 lb. grease design capacity. Interceptor has a limited lifetime warranty and is made in the USA out of seamless, rotationally molded High Density Polyethylene with 3/8” uniform wall thickness. Interceptor designed for above or below ground installation. Interceptor includes an adjustable lid system, external, vented flow control fitting, sample port access, and multiple outlet options. The steel encased composite lid provides a water / gas tight seal and has a minimum of 20,000 lbs. load capacity. The lid is designed in accordance with the loading requirements of AASHTO H20.

Product Applications:

The interceptor retains sand and sediment. Used in restaurants, kitchens, institutions, industrial facilities such as food processing and packaging plants and other types of food processing areas where fat, oil and grease (FOG) drains with the wastewater. Narrow width permits access through doorways and down stairwells. High Density Polyethylene construction ensures a lightweight installation process (two people can move and install it).

Installation:

1. All sizes of Big Max Large Interceptors can be installed above grade. The HDPE ribbed construction allows the Big Max interceptors to be placed on an engineered approved, load compliant and level surface. Under normal use the Big Max Grease Interceptors will require no additional support to maintain full functionality. Seismic ratings and needs should be determined by a design engineer and based on established codes.
2. Big Max Interceptors should be set in place by the installer. The installer should ensure pad/ site is level and load rate compliant. Unit should then be plumbed as instructed below in accordance with all required codes.

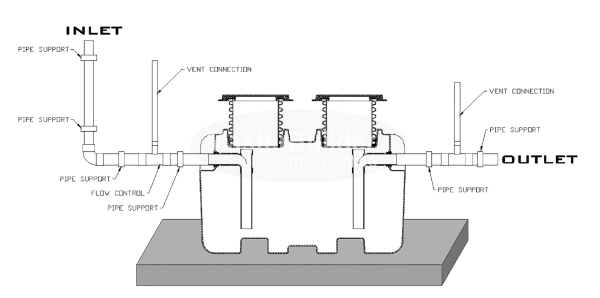

3. When installed above grade a vent should be connected to the facility supplied venting or as directed by the designing engineer.

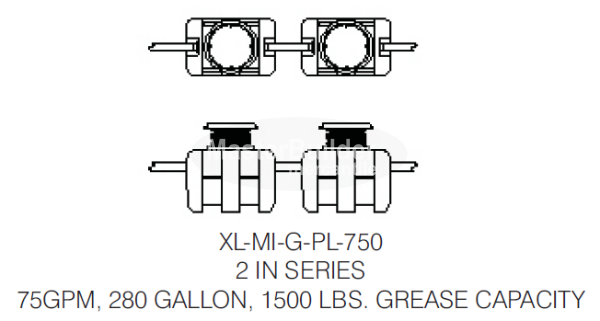

4. When installing multiple Big Max units in series or parallel the elevation change from the preceeding unit’s center line to the next unit’s center line should be 1” inch. This is allow gravity to supply the required rate of fall and control the rate of flow to allow the needed separation time.

Technical Downloads:

• Mifab XL-MI-G-PL-750: Specification Submittal
• Mifab XL-MI-G-PL-750: Installation and Operations Instructions

Approvals:

The XL-MI-G-PL-750 is tested and certified to the following standards:

• PDI-G-101
• ASME A112.14.3
• CSA B481.1
• IAPMO Listed
