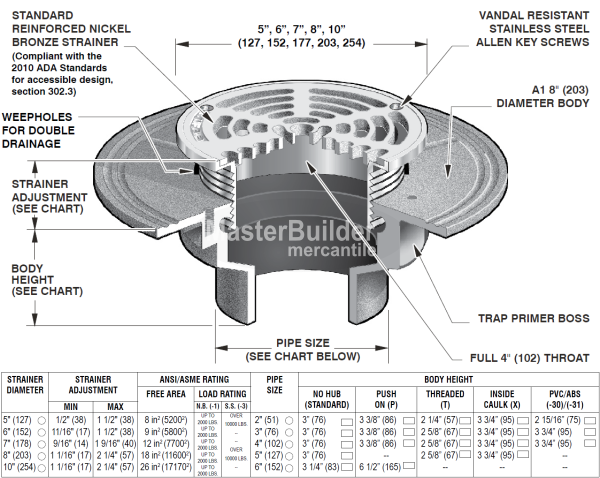

Mifab F1100 / F1100-C Floor Drain w/ Round Nickel Bronze Adjustable Strainer

Mifab F1100-1 / F1100-C-1 Floor Drain w/ Round Nickel Bronze Adjustable Strainer.

Product Overview:

• Strainers available in 5", 6", 7", 8", and 10" diameter.
• Used in showers, kitchens, restrooms, and other non-membrane finished areas. Round adjustable nickel bronze strainer is used for all types of poured finished floors.
• Can be used in non-membrane floor areas, and membrane floor areas when the -C Membrane Clamp option is selected.

Product Specification:

MIFAB® Series F1100 (*)-1 (* specify strainer diameter) lacquered cast iron floor drain with anchor flange, and standard satin finished nickel bronze strainer with vandal resistant stainless steel allen key screws. (For membrane floors, add -C to the Series number).

Available Strainer Sizes*:

• 5": F1100-5-1
• 6": F1100-6-1
• 7": F1100-7-1
• 8": F1100-8-1
• 10": F1100-10-1

Technical Downloads:

• Mifab F1100-1: Specification Submittal
• Mifab F1100-1: Features & Benefits
• Mifab F1100-1: Typical Installation

Sku Variants:

• 5" Strainer, No Clamp Collar:
• F1102-5-1, F1103-5-1, F1104-5-1, F1106-5-1
• 6" Strainer, No Clamp Collar:
• F1102-6-1, F1103-6-1, F1104-6-1, F1106-6-1
• 7" Strainer, No Clamp Collar:
• F1102-7-1, F1103-7-1, F1104-7-1, F1106-7-1
• 8" Strainer, No Clamp Collar:
• F1102-8-1, F1103-8-1, F1104-8-1, F1106-8-1
• 10" Strainer, No Clamp Collar:
• F1102-10-1, F1103-10-1, F1104-10-1, F1106-10-1
• 5" Strainer, With Clamp Collar:
• F1102-C-5-1, F1103-C-5-1, F1104-C-5-1, F1106-C-5-1
• 6" Strainer, With Clamp Collar:
• F1102-C-6-1, F1103-C-6-1, F1104-C-6-1, F1106-C-6-1
• 7" Strainer, With Clamp Collar:
• F1102-C-7-1, F1103-C-7-1, F1104-C-7-1, F1106-C-7-1
• 8" Strainer, With Clamp Collar:
• F1102-C-8-1, F1103-C-8-1, F1104-C-8-1, F1106-C-8-1
• 10" Strainer, With Clamp Collar:
• F1102-C-10-1, F1103-C-10-1, F1104-C-10-1, F1106-C-10-1
