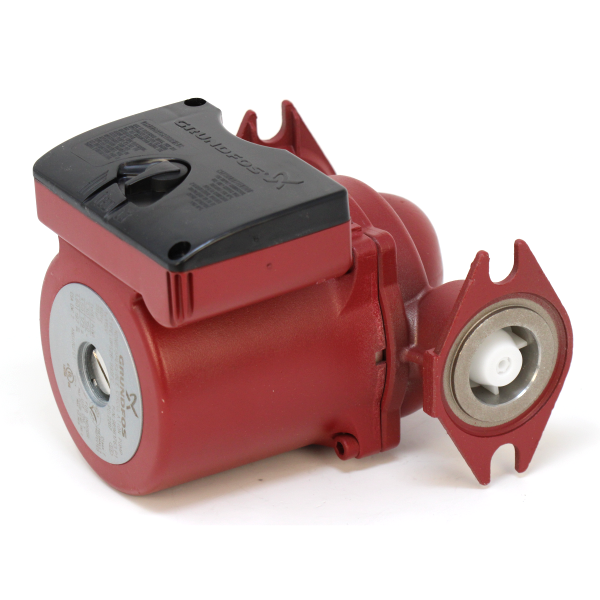

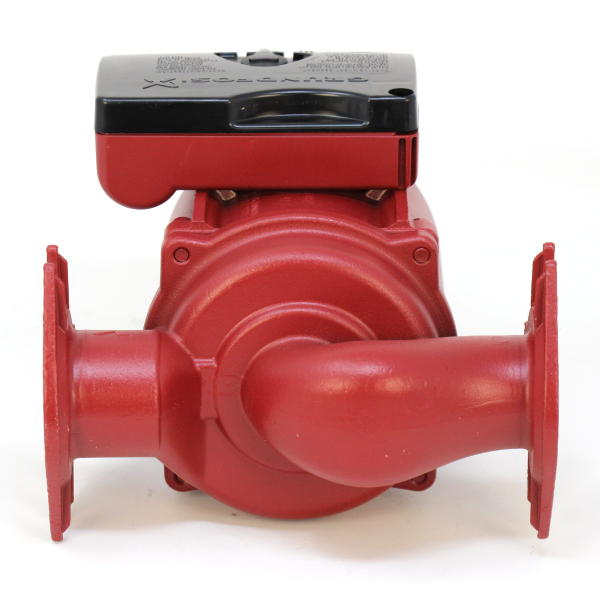

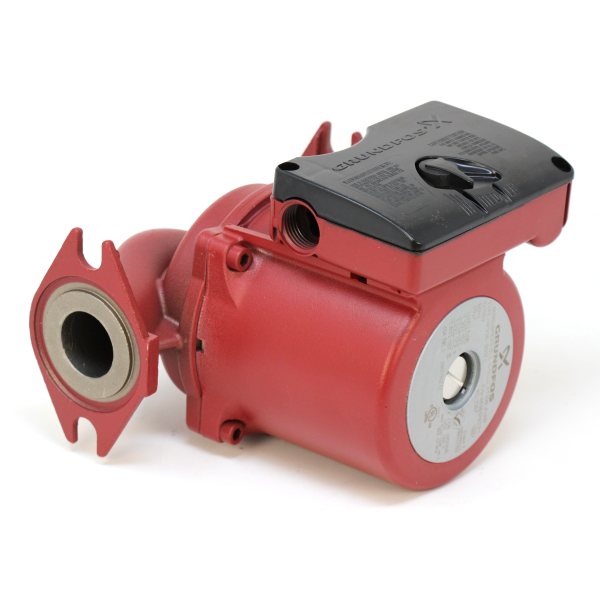

Grundfos 98961763 UPS 26-99 SFC Stainless Steel Circulator Pump

GrundfosSKU: GRU-98961763

Price:
Sale Price£756.00 GBP
Stock:
In Stock
Description

Grundfos 98961763 UPS 26-99 SFC Stainless Steel Circulator Pump

Grundfos 98961763 UPS 26-99 SFC Stainless Steel Circulator Pump

Features:

  • Ceramic shaft and radial bearings.
  • Carbon axial bearing.
  • Stainless steel rotor can and bearing plate.
  • Impeller - Corrosion-resistant impeller, composite, PES
  • Pump Housing - Stainless Steel pump housing
  • Phase - 1-phase motor

Specifications:

Technical

Speed Number 3
Maximum flow 33 US gpm
Max flow 33 US gpm
Maximum head 28.87 ft
Head max 28.87 ft
Approvals on nameplate UL, CSA
Valve pump with built-in isolating and non-return valves

Materials

Pump housing Stainless steel
EN 1.4301
Impeller Composite, PES

Installation

Maximum ambient temperature 104 °F
Ambient max at 176°F liquid 176 °F
Maximum operating pressure 145.04 psi
Flange standard USA Oval
Type of connection S.S. Flange
Pipe connection 2 - Bolt Flange
Pressure stage PN 10
Port-to-port length 6 1/2 in

Liquid

Pumped liquid Water
Liquid temperature range 35.6 .. 230 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³

Electrical Data

Power input in speed 1 0.2012 HP
Power input in speed 2 179 W
Max. power input 197 W
Main frequency 60 Hz
Rated voltage 1 x 115 V
Current in speed 1 1.3 A
Current in speed 2 1.5 A
Current in speed 3 1.8 A
Capacitor size - run 20 µF/180 V
Number of poles 2
Insulation class (IEC 85) F
Motor protection CONTACT
Thermal protec internal

Controls

Pos term box

9H



Others

Gross weight 10.3 lb
Country of origin US
Custom tariff no. 8413.70.00.21
