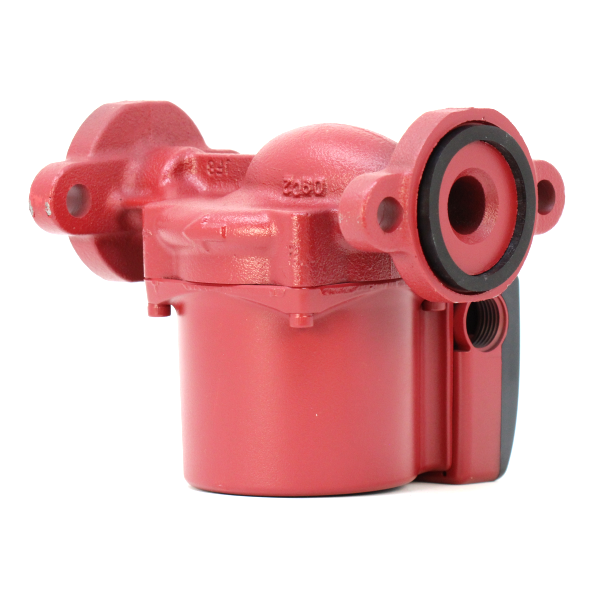

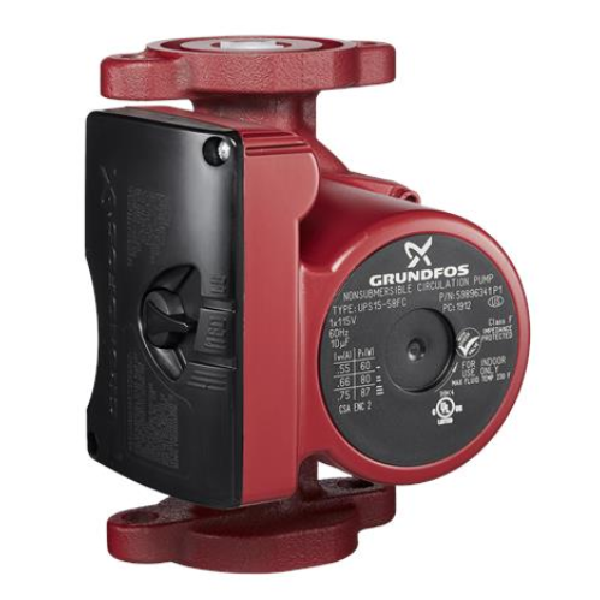

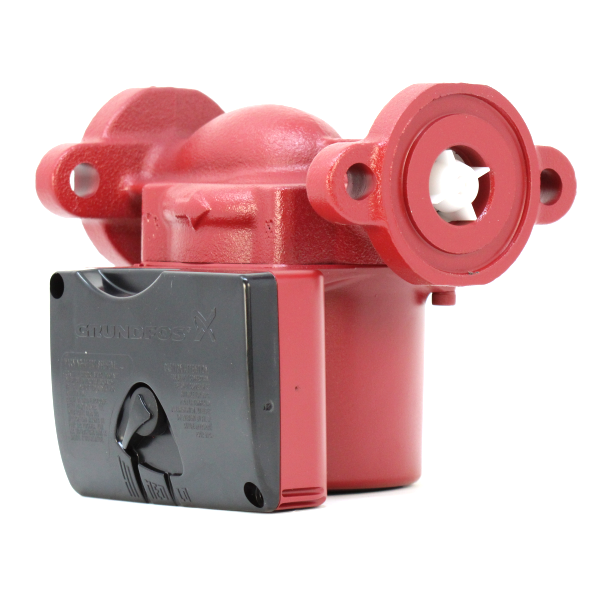

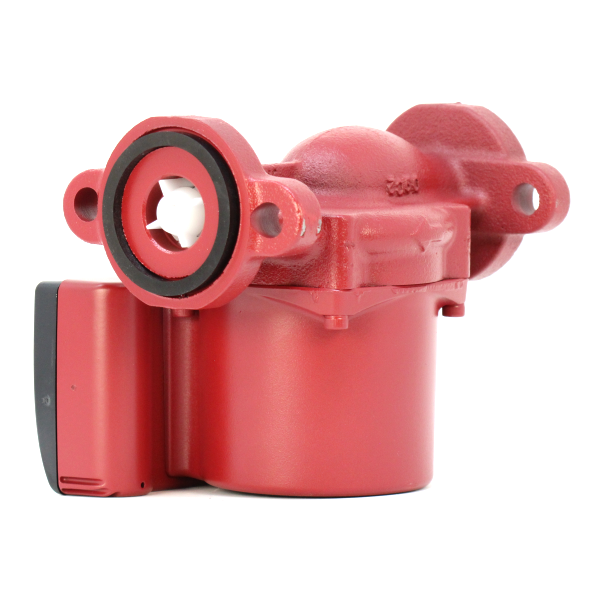

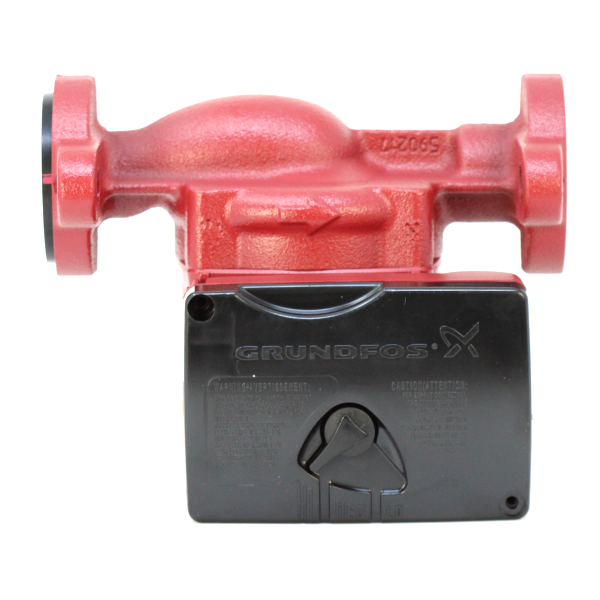

Grundfos 59896341 UPS 15-58 FC Cast Iron Circulator Pump

GrundfosSKU: GRU-59896341

Price:
Sale Price£227.00 GBP
Stock:
Contact for Availability
Description

Grundfos 59896341 UPS 15-58 FC Cast Iron Circulator Pump

Grundfos 59896341 UPS 15-58 FC Cast Iron Circulator Pump

    Specifications:

    Technical

    Speed Number:  3
    Maximum flow:  17.2 US gpm
    Max flow:  17.2 US gpm
    Maximum head:  19.36 ft
    Head max:  19.36 ft
    Approvals on nameplate:  UL, CSA
    Valve:  pump with built-in isolating and non-return valves

    Materials

    Pump housing:  Cast iron
    EN-JL1030
    ASTM 30 B
    Impeller:  Composite, PES

    Installation

    Maximum ambient temperature:  104 °F
    Ambient max at 176°F liquid:  176 °F
    Maximum operating pressure:  145.04 psi
    Flange standard:  USA Oval
    Type of connection:  C.I. Flange
    Pipe connection:  2 - Bolt Flange
    Pressure stage:  PN 10
    Port-to-port length:  6 1/2 in

    Liquid

    Pumped liquid:  Water
    Liquid temperature range:  35.6 .. 230 °F
    Selected liquid temperature:  140 °F
    Density:  61.35 lb/ft³

    Electrical Data

    Power input in speed 1:  0.0805 HP
    Power input in speed 2:  80 W
    Max. power input:  87 W
    Main frequency:  60 Hz
    Rated voltage:  1 x 115 V
    Current in speed 1:  0.55 A
    Current in speed 2:  0.66 A
    Current in speed 3:  0.75 A
    Capacitor size - run:  10 µF/180 V
    Number of poles:  2
    Insulation class (IEC 85):  F
    Motor protection:  CONTACT
    Thermal protec:  internal

    Controls

    Pos term box

    9H



    Others

    Gross weight:  7.25 lb
    Country of origin:  US
    Custom tariff no.:  8413.70.00.21
