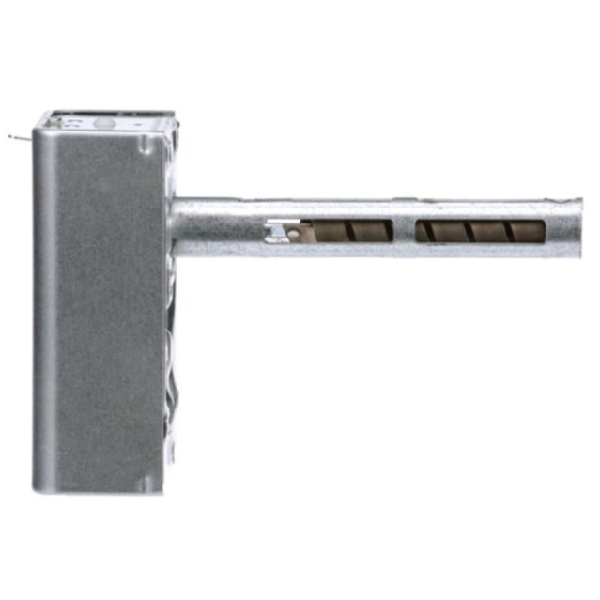

Emerson 5D51-35 Series Fan & Limit Control
Features:
- Summer fan switch for ventilation without changing control settings. Has same fan and limit switch mechanism
- Dial has individual pointers for fan cut-in and cut-out settings.
- Removable solid copper jumper between fan and limit switches
- Long terminal screws for wiring. Junctions can be made on terminal block
- Slotted mounting holes for easy installation
Specifications:
- Length - 5” Element
- Temperature Range - Fan - 50 to 265°F (10 to 129°C)
- Differential - Fan-Adjustable 15°F minimum Limit-Fixed 25°F
- Switch Action - Fan-Close on Rise Limit-Open on Rise
- Amperage - Fan Circuit 5.6 FLA at 24 Vac, 14.0 FLA at 120 Vac, 7.0 FLA at 240, Limit 6.0 FLA at 24 Vac, 10.0 FLA at 120 Vac, 6.0 FLA 240
- Overall Dimensions - 4.3”H X 2.9”W X 1.6”D (Case)
- Approvals - U.L. listed and C.S.A. approved
