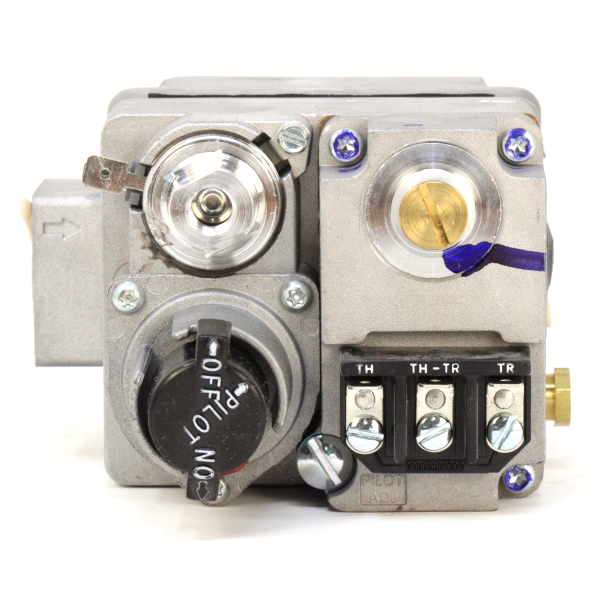

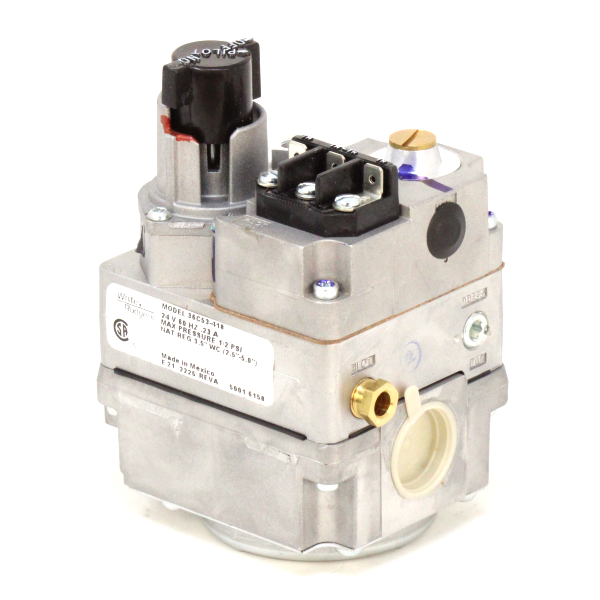

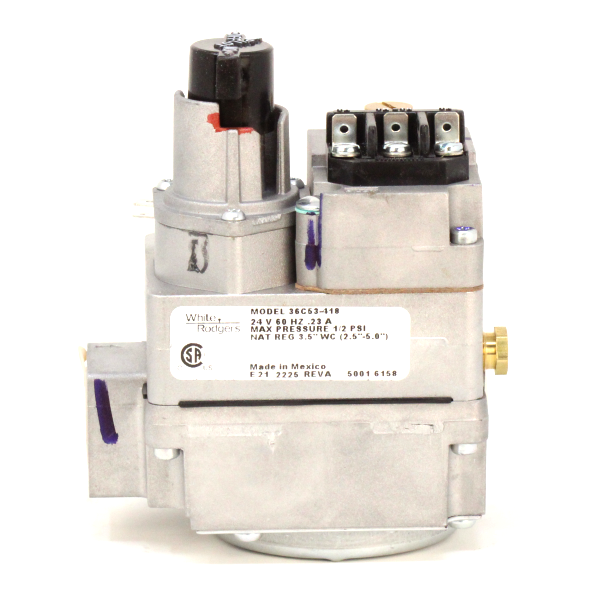

Emerson 36C53-418 36C Series Furnace Standing Pilot Retrofit Gas Valve

EmersonSKU: EME-36C53-418

Price:
Sale Price£269.00 GBP
Description

Emerson 36C53-418 36C Series Gas Valves

Emerson / White-Rodgers 36C53-418 36C Series Furnace Standing Pilot Retrofit Gas Valve.

Features:

  • Line Interrupter styles use standard 30 mV Thermocouples.
  • Straight through design
  • Inlet/outlet reducer bushings
  • Mounting position upright, or 0° to 90°From upright in any direction.
  • CSA approved

Specifications:

  • Voltage - 24 Vac 60 Hz
  • Opening Style- 1 - Stage Slow Opening
  • Pipe Size
  • Regulator Setting - 3.5"
  • Regulator Adjustment Range - 2.5”-5.0”, Nat. Gas
  • Regulator Adjustment Range - 7.5”-12.0”, LP Gas
  • LP Conversion Kit Included - No
  • Reducer Bushing Kit - Yes
  • Flow Direction - Straight Through
  • Side Taps - No
  • Inlet/Outlet Pressure Tap - No/Yes
  • Standing Pilot with Line Interrupter - Yes
  • HSI/DSI - No
  • Intermittent/Proven Pilot - No
