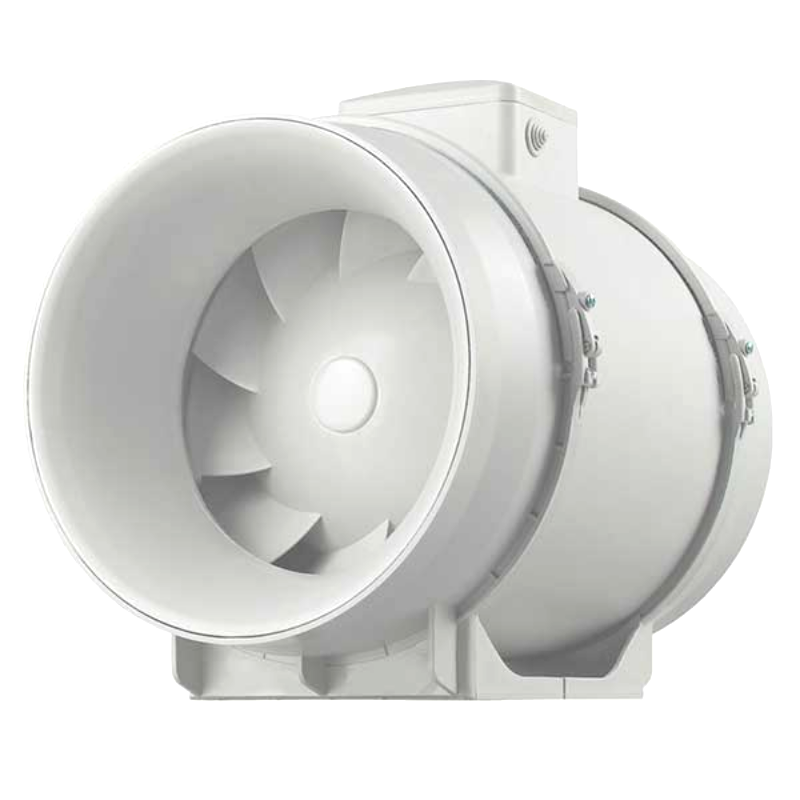

CONTINENTAL FAN CFM MFT100S 4" Mixed Flow In-Line 2-Speed Virtually Silent Duct Fan 146/109 CFM.
Overview:
MFT-S Mixed Flow In-Line Fans feature a specially designed housing that is optimized with an aerodynamic diffuser and specially designed impeller. This combination produces powerful pressure and airflow with very little noise. Ultimately, MFT-S fans are designed to be virtually silent.
As for construction, MFT-S fans incorporate a durable, UV resistant plastic housing. They utilize a two speed motor that is energy efficient. In addition, the motor and impeller are easy to access.
MTF-S fans may be used to supply or exhaust air. They are capable of moving airflow through long or complex duct runs. Therefore, they provide an ideal solution for areas that are hard to heat or cool.
Features & Benefits:
- UV and corrosion resistant, durable plastic housing
- Virtually silent mixed flow fan aerodynamically designed for smooth airflow
- Easy to install – mounting brackets included – simple maintenance
- May be used for supply or exhaust air
- Ideal for long duct runs
- Fan may be mounted in any position
- Suitable for air temperatures up to 140 F
- Optional pre-wired with 120V power cord (MFT-S-C)
- Energy efficient two speed motor
- Single-phase asynchronous motor; IPX4 protection
- Permanently lubricated ball bearing motor for maintenance-free operation
- Automatic reset thermal overload protection
- Precision balanced fan and motor for quiet and vibration-free operation
- Easy access to motor & impeller; no need to dismantle duct work
- Available in 4″, 5″ and 6″ duct diameters
- Airflow capacities up to 327 cfm
Applications for MFT Mixed Flow In-line Fans:
-
Residential
- Bathroom exhaust
- Whole house ventilation
- Duct boosting
- General kitchen exhaust
- Laundry room exhaust
- HRV / ERV boosting
-
Commercial
- Conference room exhaust
- Computer rooms
- Humidity and moisture removal
- Powered make-up air
- Equipment and spot cooling
- Hair and nail salons

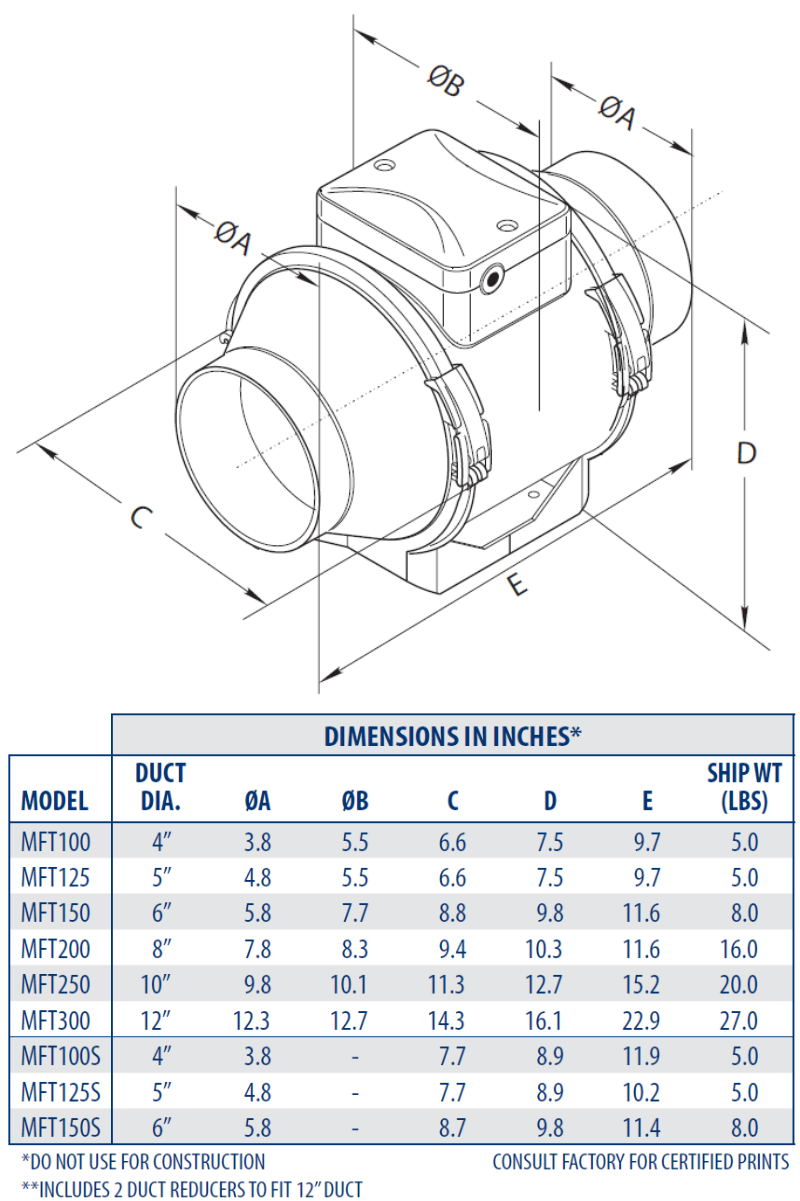

Dimensions:

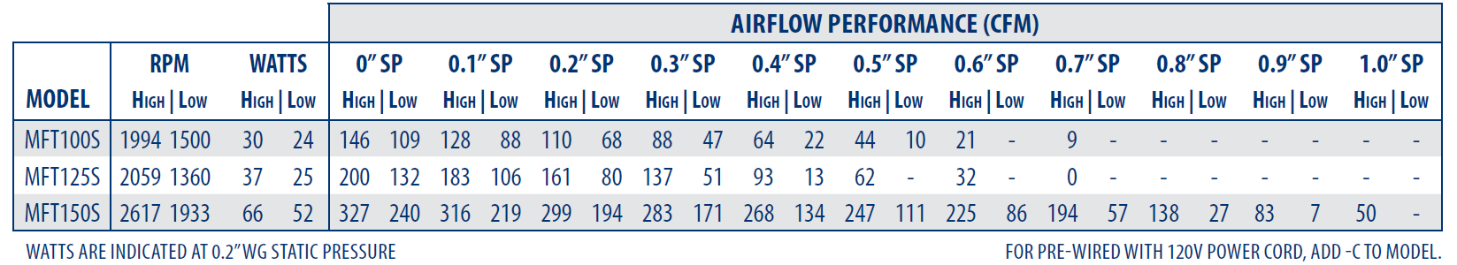

Performance Data:
Technical Downloads:
- CFM MFT100-S: Brochure
- CFM MFT100-S: Dimensional Drawings
- CFM MFT100-S: Installation Instructions
