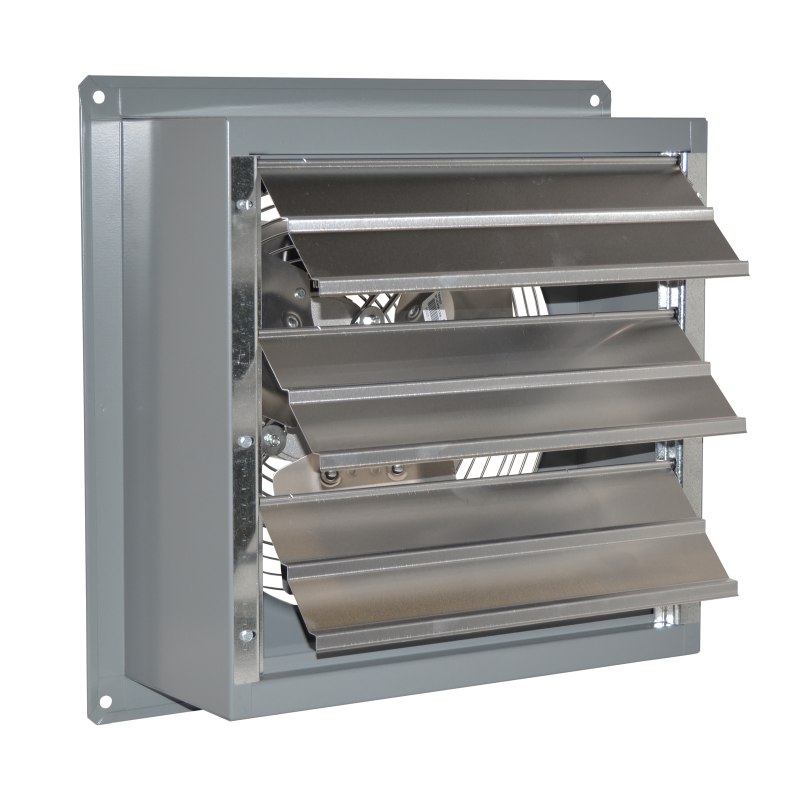

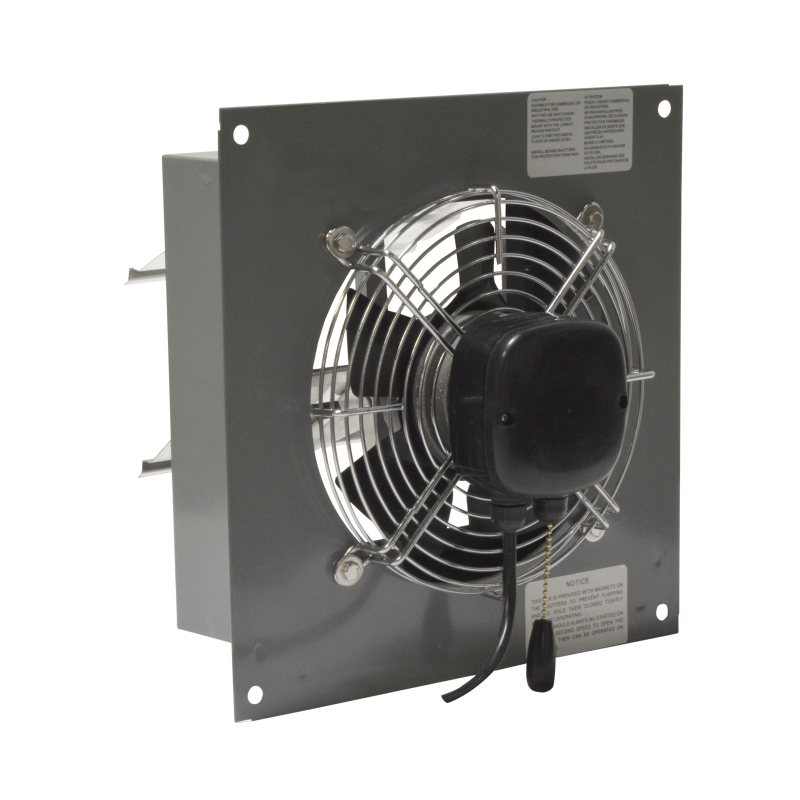

CANARM SD08 8" 2-Speed Commercial Exhaust Fan, Cord & Plug

CanarmSKU: CAN-SD08

Price:
Sale Price£353.00 GBP
Description



CANARM SD08 8" 2-Speed Standard Commercial Exhaust Fan, 115V Plug-In Style, 270/150 CFM @ 0.10" S.P..

Features & Benefits:

  • Smooth, quiet, reliable, maintenance-free operation
  • Durable steel construction with grey powder coat finish
  • 2 speed fan with high efficiency Euro design external rotor motor
    • Totally enclosed with sealed ball bearings
    •  Pull chain speed control
    •  9 foot cord with 115 volt, 3-prong plug
  • Swept back, high efficiency, low noise blade design
  • Quiet, aluminum shutters with tie bar to maximize airflow and a magnet to prevent flapping and provide a superior seal
  • Zinc plated OSHA guard
  • Fans shipped completely assembled
  • Easy to install! Mount fan using four screws, plug it in and turn it on
  • Now upgraded with tie bar shutters and magnets for quieter operation and superior seal!

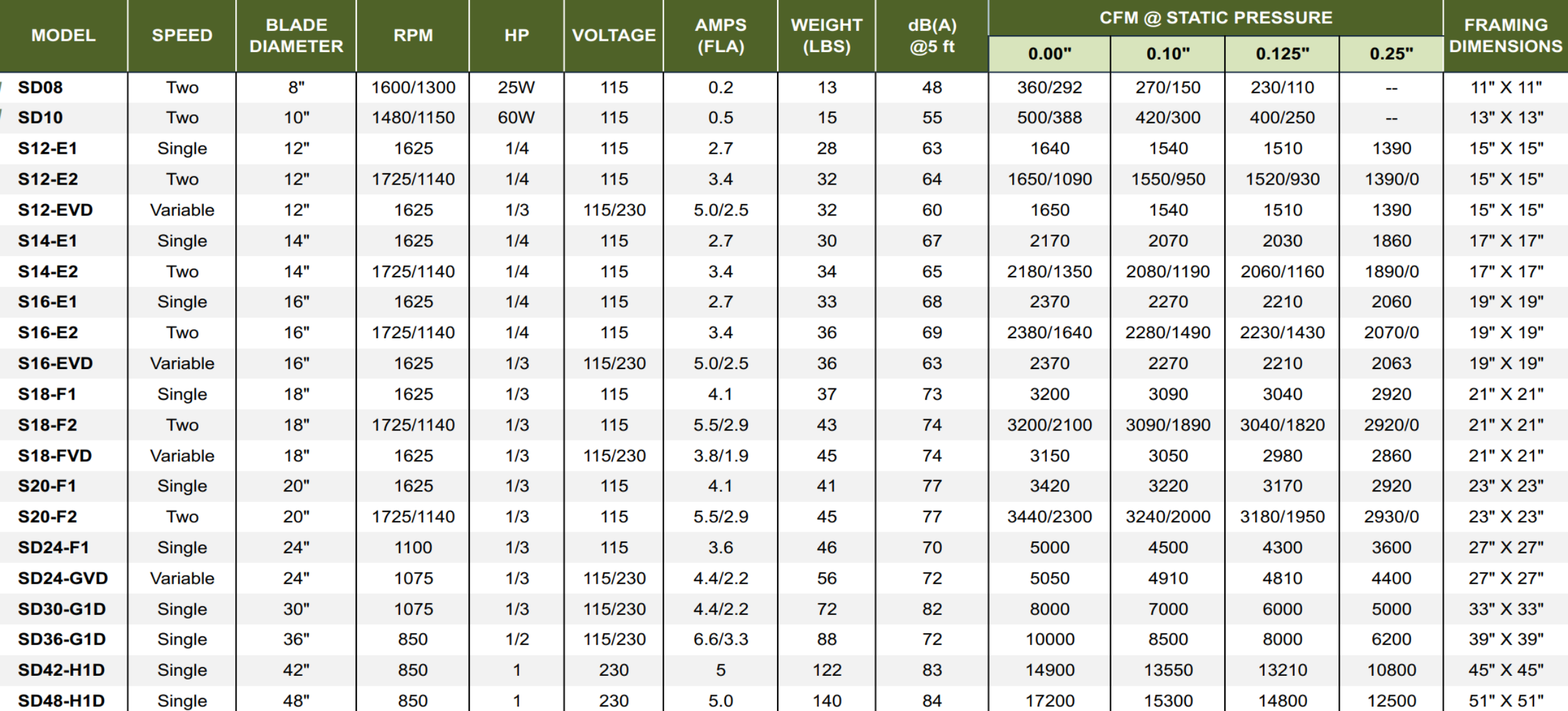

Product Specifications:

MODEL:

SD08

SPEED:

TWO

BLADE DIAMETER:

8”

RPM:

1600 / 1300

HP:

25W

VOLTAGE:

115

AMPS (FLA):

0.2

WEIGHT (LBS.):

13

CFM @ STATIC PRESSURE:





0.00”

360/292



0.10”

270/150



0.125”

230/110



0.25”

--

FRAME DIMENSIONS:

11” X 11”

* Some models are available with explosion proof motors.

Notes:

  • RPM Min (Minimum) is determined when louvres are opened one inch.
  • Wind has a significant effect on exhaust fans. A 10 mph wind creates a 0.05” pressure against the fan. A 20 mph wind creates 0.20” pressure and 30 mph a 0.45” pressure. These pressures are in addition to the static pressure in the building. Wind blocks or hoods should be included in all designs where fans will be subjected to winds above 10 mph.

 Dimensions:


FAN SIZE

A

B

C

D [c/c]

E [SQR]

N

8”

13 ¼”

7 9/16”

4”

12”

10 ¾”

2

10”

15 ¼”

7 7/8”

4”

14”

12 ¾”

3


Technical Downloads:
