Description

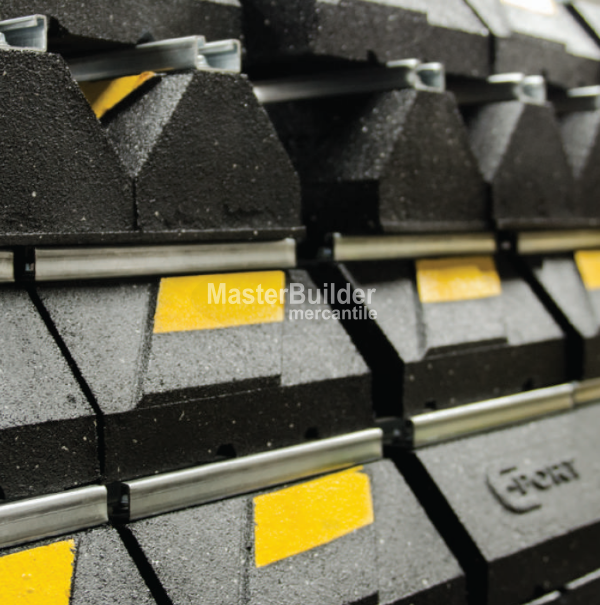

C-PORT C Series Rubber Roof Support with 13/16" Galvanized Steel Channel.
Product Overview:
- The C Series channel support is designed for superior support of gas and refrigeration piping systems, cable tray, electrical conduit, multiple lines, HVAC equipment and hundreds of other applications.
- It is available in any length as a roof curb (sleeper) replacement.
- Maximum Load 750 LBS per Foot.
- Strut Clamps sold separately. Click Here
SKU | HEIGHT | WIDTH | LENGTH | WEIGHT | MAX LOAD |
C10 | 4-7/8" (124mm) | 6" (152mm) | 9.6" (244mm) | 5.30 lbs. | 750 lbs. |
C20 | 4-7/8" (124mm) | 6" (152mm) | 19.2" (487mm) | 11.23 lbs. | 1500 lbs. |
C30 | 4-7/8" (124mm) | 6" (152mm) | 28.8" (731mm) | 16.31 lbs. | 2250 lbs. |
C40 | 4-7/8" (124mm) | 6" (152mm) | 38.5" (978mm) | 21.72 lbs. | 3000 lbs. |
C48 | 4-7/8" (124mm) | 6" (152mm) | 48" (1219mm) | 27.12 lbs. | 3750 lbs. |
Features & Benefits:
- 100% Recycled Rubber
- No supplemental pad
- No float
- No deterioration
- Dampens vibrations
- Compatible with most rooftop materials
Product Applications:
- Gas Pipes
- Refrigeration Pipes
- Electrical Conduit
- HVAC
- Platform Systems
- And more...
Technical Specification:
- Material:
- Base: 100% recycled rubber, UV resistant
- Strut: 14-gauyge galvanized channel strut (13/16" high)
- Warranty: 10-Years
- Recommended Spacing: Refer to Local Code
- May qualify for L.E.E.D. credits
Technical Downloads:
- C-PORT C Series: Specification Submittal
