Description
.

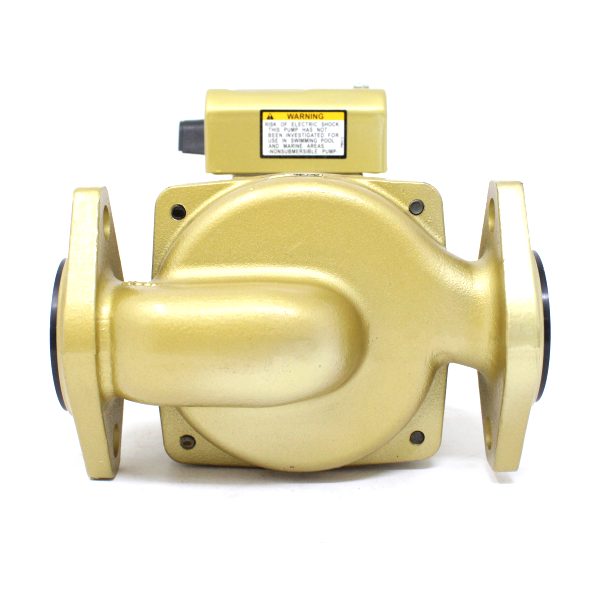

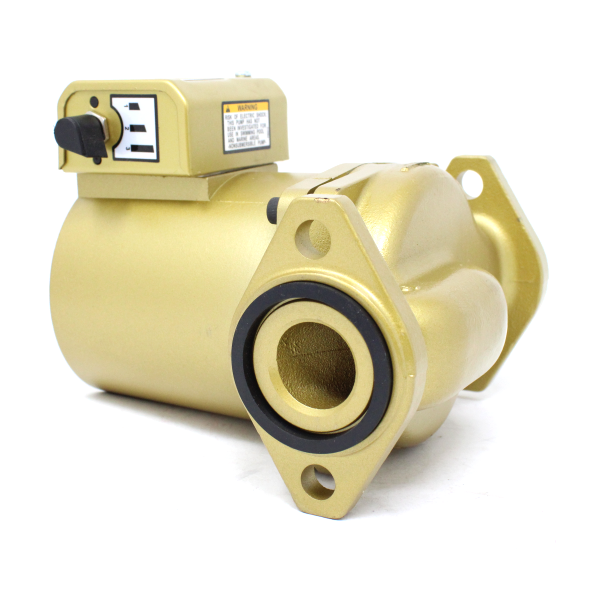

Bell & Gossett 103401LF NBF-36 Bronze Circulator Pump 1/6HP 3 Speed.
Specifications:
Product Section | Centrifugal Pumps & Accessories |
Product Subsection | Close Coupled Pumps |
Product Series | Series NBF |
Model | NBF-36* |
Description | 103401LF |
Submittal ID | A-127L |
RPM | 3300 |
A-Dim | 5-3/4 (146) |
B-Dim | 3-9/16 (91) |
Connection | Flange 3/4, 1, 1-1/4, 1-1/2 |
C-Dim | 3-3/16 (81) |
D-Dim | 6-3/16 (157) |
E-Dim | 5-3/8 (137) |
F-Dim | 6-3/8 (162) |
G-Dim | 3-3/16 (82) |
CAD model unit system | inch/pound |
AutoCAD / AutoCAD MEP support | https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/ACIS_file_Import_Instruction.pdf |
Download Revit File | https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/revit_families/2021.01 NRF_NBF_SSF_LR Pumps.zip |
Contact CAD Support | http://www.product-config.net/catalog3/bellgossett-support.jsp?id=103401LF |
Adobe 3D PDF help | http://www.product-config.net/catalog3/help/3dviewerhelp.html |
WATTS | 270 |
F.L.AMPS | 2.30 |
Approx.Shpg. Weight | 13.1 (6.0) |
