Description

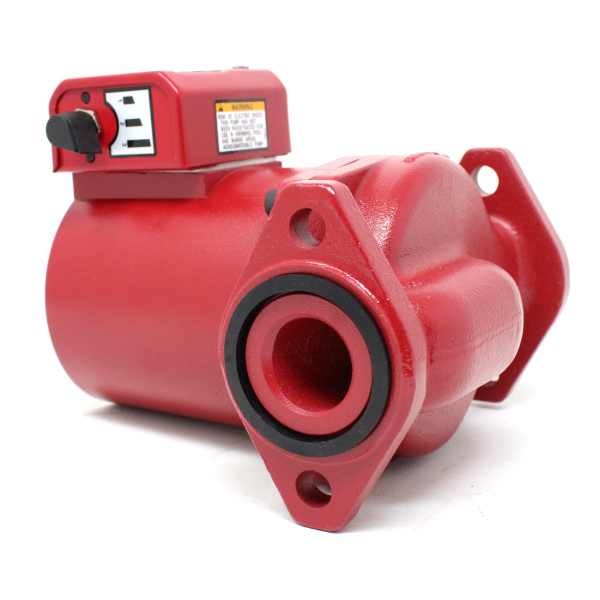

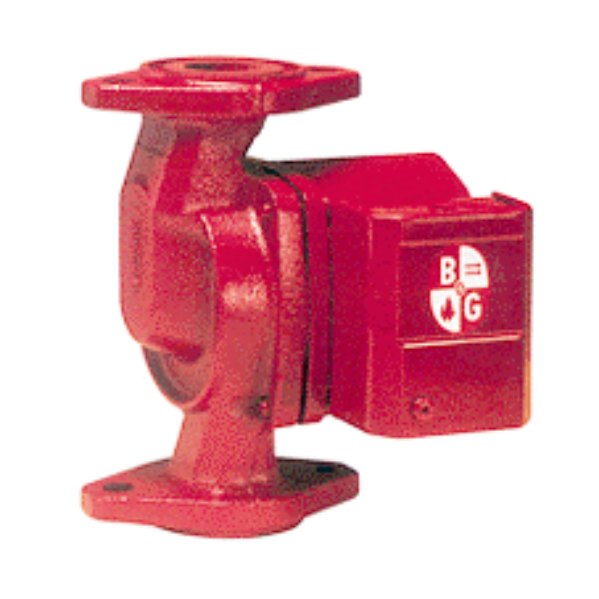

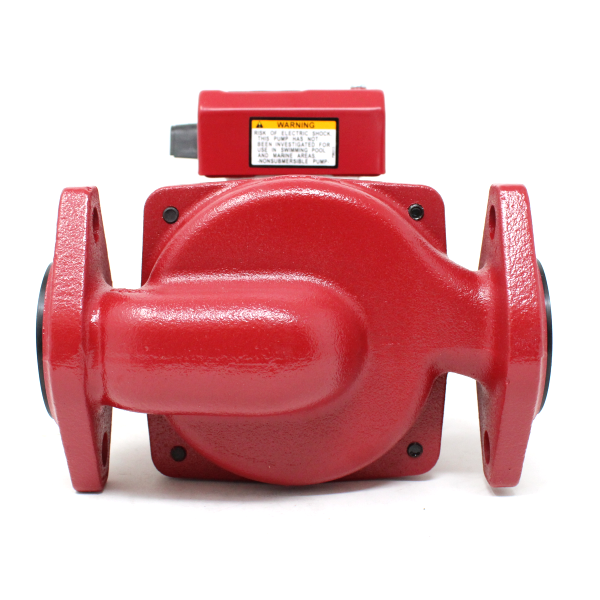

Bell & Gossett 103400 NRF-36 Cast Iron Circulator Pump 1/6HP 3 Speed.
Product Features:
- High starting torque for dependable seasonal start-ups (Up to 80% more than competing circulators)
- Unique B&G DuraGlide Bearing System assures years of trouble-free start-ups
- Closed impeller design improves operating efficiency
- Backed by B&G’s representatives and a 3-year warranty–the best in the business
- DuraGlide Bearing System incorporates several components working together to eliminate seasonal freeze-up
- Stabilized, heat resistant, polypropylene impeller, its closed design improves operating efficiency
- Self-cleaning particle shield protects the shaft and bearings from system start-up debris
- One-piece, high-nickel stainless steel stator can isolates the stator from system fluid and maintains precision bearing alignment for longer bearing life
- Carbon bearings, diamond-like ceramic shaft and generous clearances are more resistant to lime, chloride and oxide build-up
- Face plate and rotor sleeve feature corrosion resistant stainless steel construction for longer life
Specifications:
Product Section | Centrifugal Pumps & Accessories |
Product Subsection | Close Coupled Pumps |
Product Series | Series NRF |
Model | NRF-36 |
Description | 103400 |
Submittal ID | A-126H |
RPM | 3300 |
A-Dim | 5-3/4 (146) |
B-Dim | 3-9/16 (91) |
C-Dim | 3-3/16 (81) |
D-Dim | 6-7/8 (175) |
Voltage | 115 |
E-Dim | 5-3/8 (137) |
F-Dim | 6-3/8 (162) |
G-Dim | 3-3/16 (81) |
CAD model unit system | inch/pound |
AutoCAD / AutoCAD MEP support | https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/ACIS_file_Import_Instruction.pdf |
Download Revit File | https://dpk3n3gg92jwt.cloudfront.net/domains/bellgossett/revit_families/2021.01 NRF_NBF_SSF_LR Pumps.zip |
Contact CAD Support | http://www.product-config.net/catalog3/bellgossett-support.jsp?id=103400 |
Adobe 3D PDF help | http://www.product-config.net/catalog3/help/3dviewerhelp.html |
Weight [lb] | 13.1 |
WATTS | 270 |
F.L.AMPS | 2.10 |
