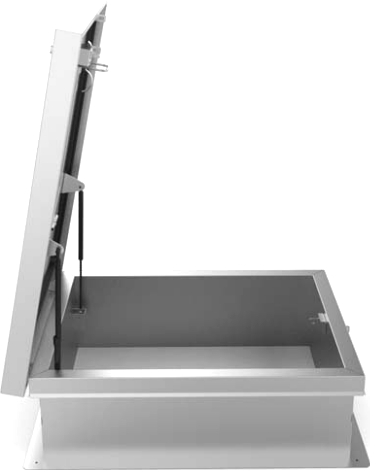

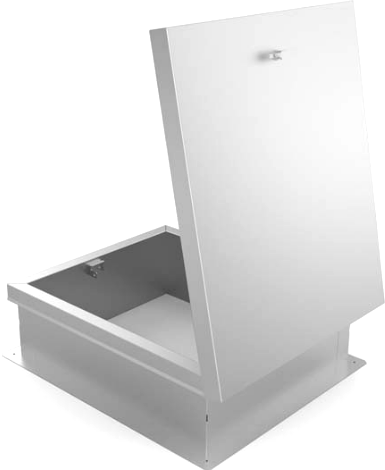

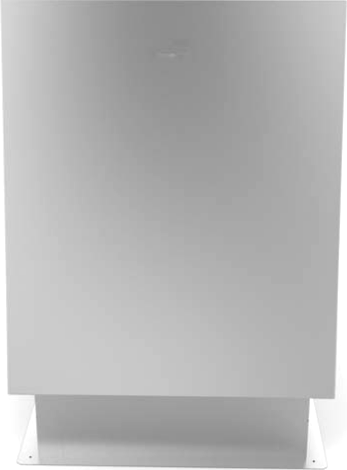

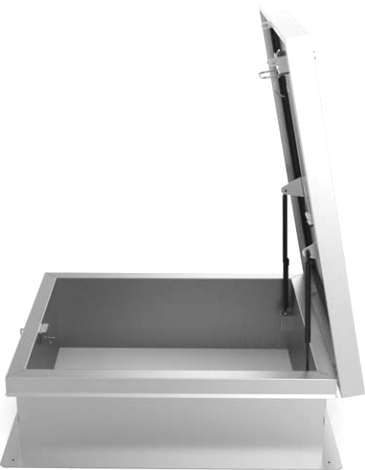

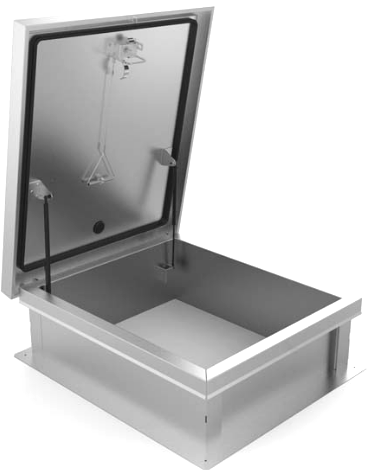

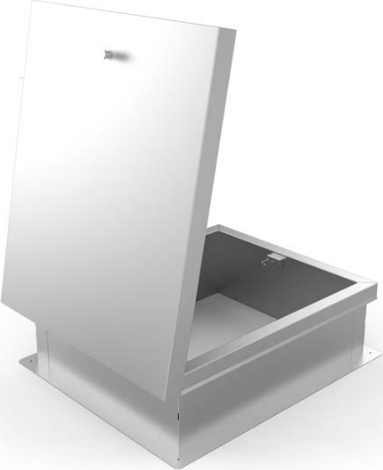

Acudor RHA3838 30" x 30" Aluminum Ladder Access Roof Hatch

AcudorSKU: ACU-RHA3838

Price:
Sale Price£3,840.00 GBP
Description

Acudor RHA Aluminum Ladder Access Roof Hatch

Acudor RHA3838 30" x 30" Aluminum Ladder Access Roof Hatch

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

  • Acudor ladder access roof hatches are designed to provide convenient economical access to the roof of the building.

Features & Benefits:

  • Weather tight construction.
  • 12" high insulated curb.
  • Stainless steel hardware.
  • Convenient one hand operation.
  • Supports 40lbs/sqft live load.

Door Specifications:

  • Cover: Double skin construction with 1" polyiso R6 insulation and continuous EPDM foam weather / draft seal gasket that is attached to the inside of the cover to provide a flush, tight fit. Designed to support a live load of 40lbs/sqft, the cover is 11 gauge aluminum with a 20 gauge aluminum inside liner.
  • Curb: 11 gauge aluminum with 1" thick polyiso R6 insulation at curb exterior. Curb is 12" high with 3.375" wide bottom flange an pre-drilled mounting holes.
  • Hinge: Heavy duty aluminum pintle hinges with 3/8" SS pin.
  • Opening: Gas Spring operators allow cover to open and close with ease. Stainless Steel inside pull handle allows for easy control when closing cover.
  • Door Latch: Self latching, stainless steel outside T handle with stainless steel inside lock and lever assembly. Unit also has inside and outside padlock provisions.
  • Finish: Mill.

Options:

Acudor TSP-1 Telescope Safety Post & Acudor SLE-Y Safety Ladder Extension
TSP-1: Telescope Safety Post offers safe accessibility to roof areas through hatch.
SLE-Y: Safety Ladder Extension offers safe accessibility to roof areas through hatch.
    Acudor RH RGS Safety Rail System with Self Closing Gate

    RH-RGS: Safety Rail System with Self Closing Gate Designed to Meet OSHA Standards.

    Technical Documentation:

    Acudor RHA Aluminum Ladder Access Roof Hatch Product Page: Click Here.
    Acudor RHA Aluminum Ladder Access Roof Hatch Specification Submittal: Click Here.

    Acudor RH-RGS Safety Rail System Product Page: Click Here.

    Acudor RH-RGS Safety Rail System Specification Submittal: Click Here.
