Acudor CD-5080-14x14 - 14" x 14" Galvanized Duct Access Door

AcudorSKU: CD5080-14x14

Price:
Sale Price£33.00 GBP
Description

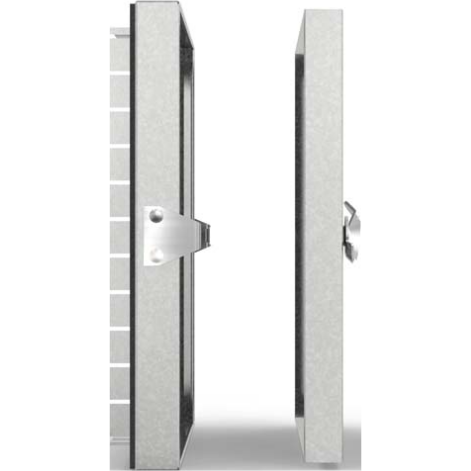

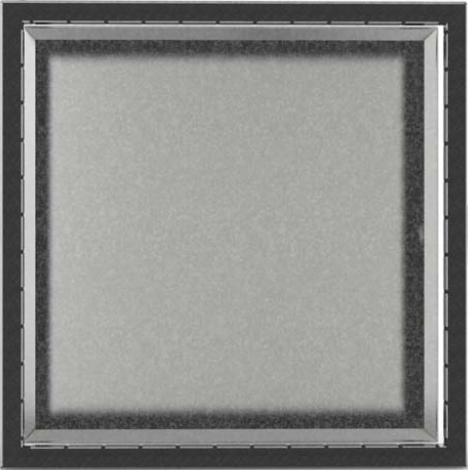

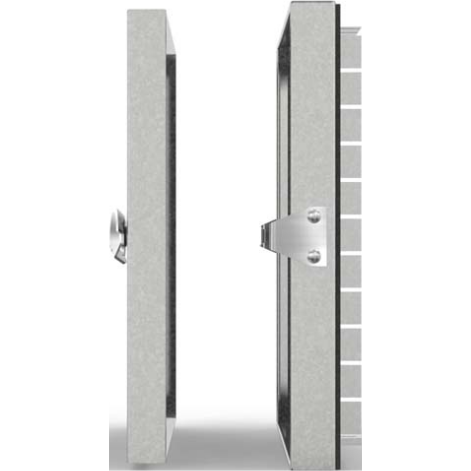

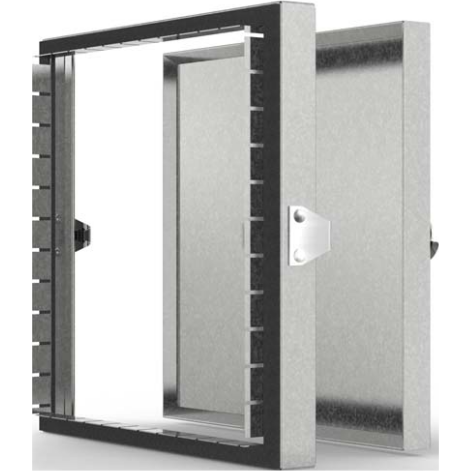

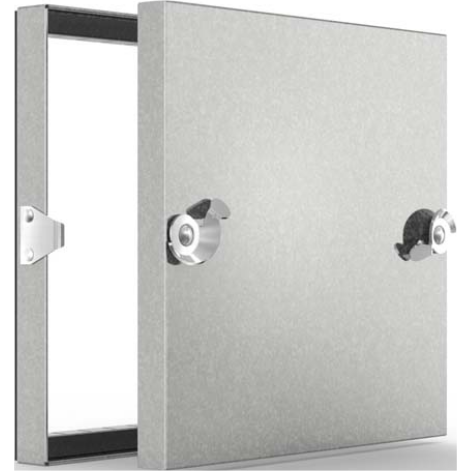

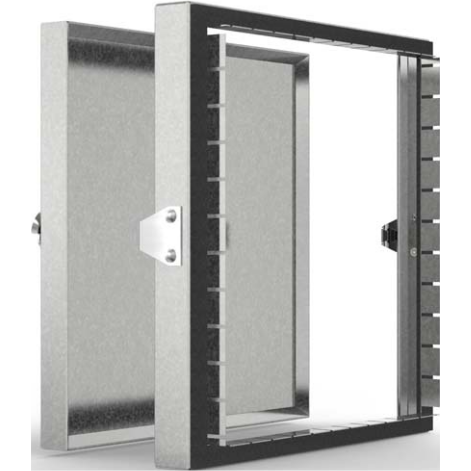

Acudor CD-5080 Galvanized Duct Access Door

Acudor CD-5080-14x14 - 14" x 14" Galvanized Duct Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com

Application:

  • Assures a tight seal without obstruction in the air system.

Features & Benefits:

  • These doors are designed for use in low to medium pressure up to 3" static W.G.
  • 5/8" notched knock over tabs on the inside of the frame provide for easy installation.

Door Specifications:

  • Material: Galvanized steel, double panel.
  • Door: 24 gauge.
  • Mounting Frame: 24 gauge with 5/8" notched knock over tabs.
  • Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame, also between frame and duct.
  • Insulation: Door panel filled with 2" fiberglass insulation (7.7 R factor), compressed into 1".
  • Latch: Self tightening, hand operated cam latch (standard)

    Technical Documentation:

    Acudor CD-5080 Galvanized Duct Access Door Product Page: Click Here.
    Acudor CD-5080 Galvanized Duct Access Door Specification Submittal: Click Here.
